TRiPEAK Twist-Fit Press Fit Bottom Bracket 24mm Shimano BB86 BB92 OPEN BOX

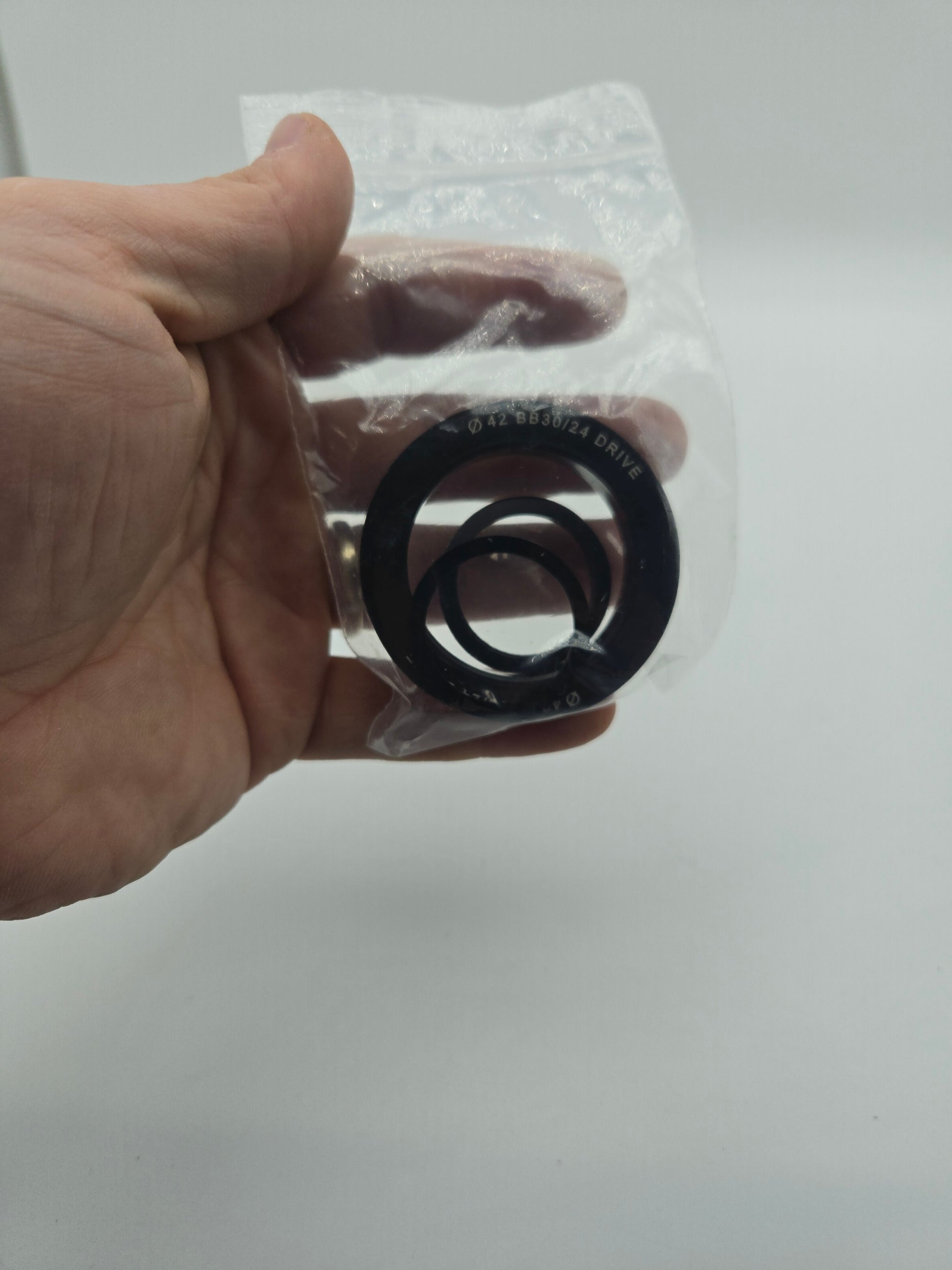

OPEN BOX — item is untested and appears new.

Overview

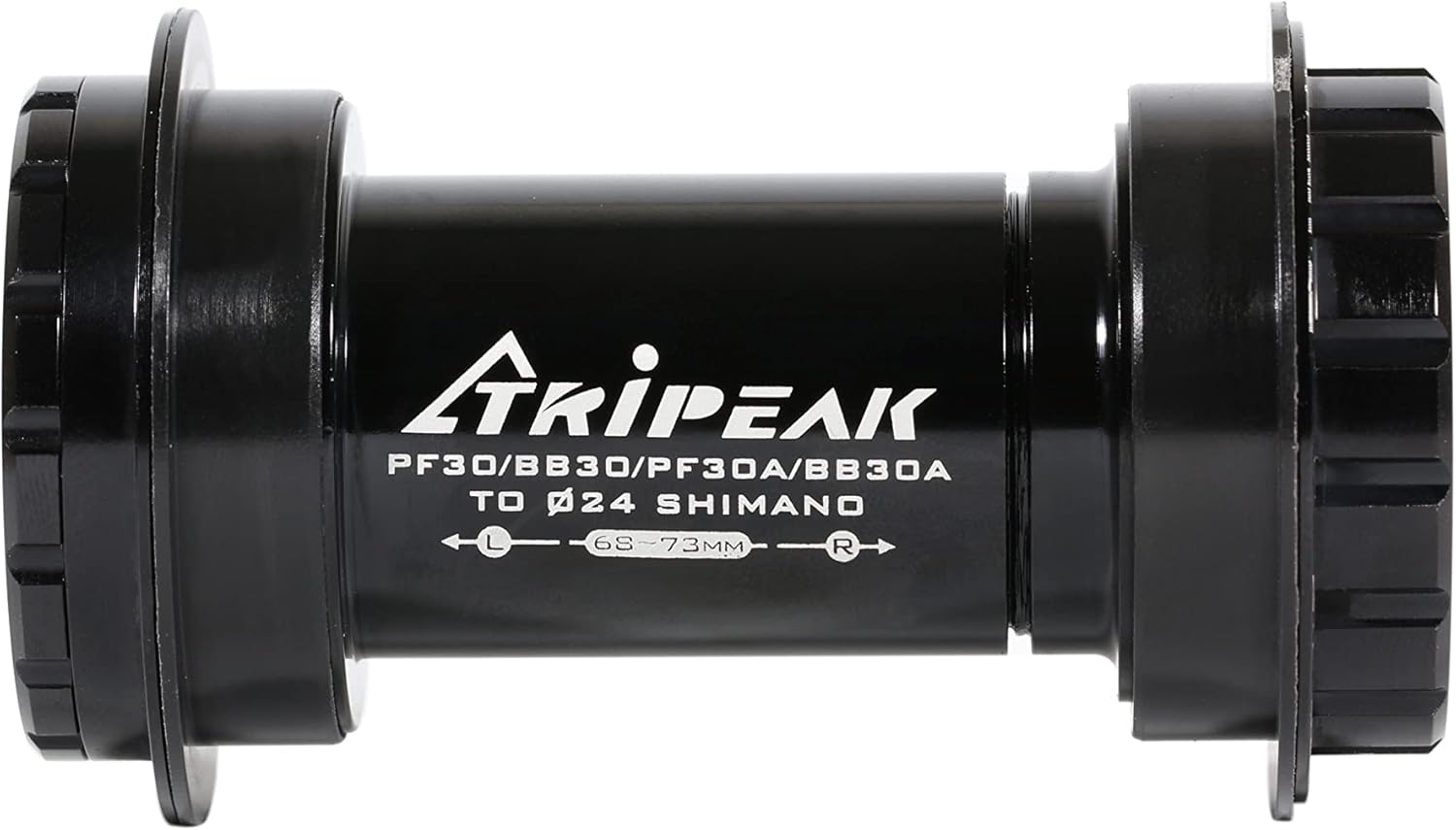

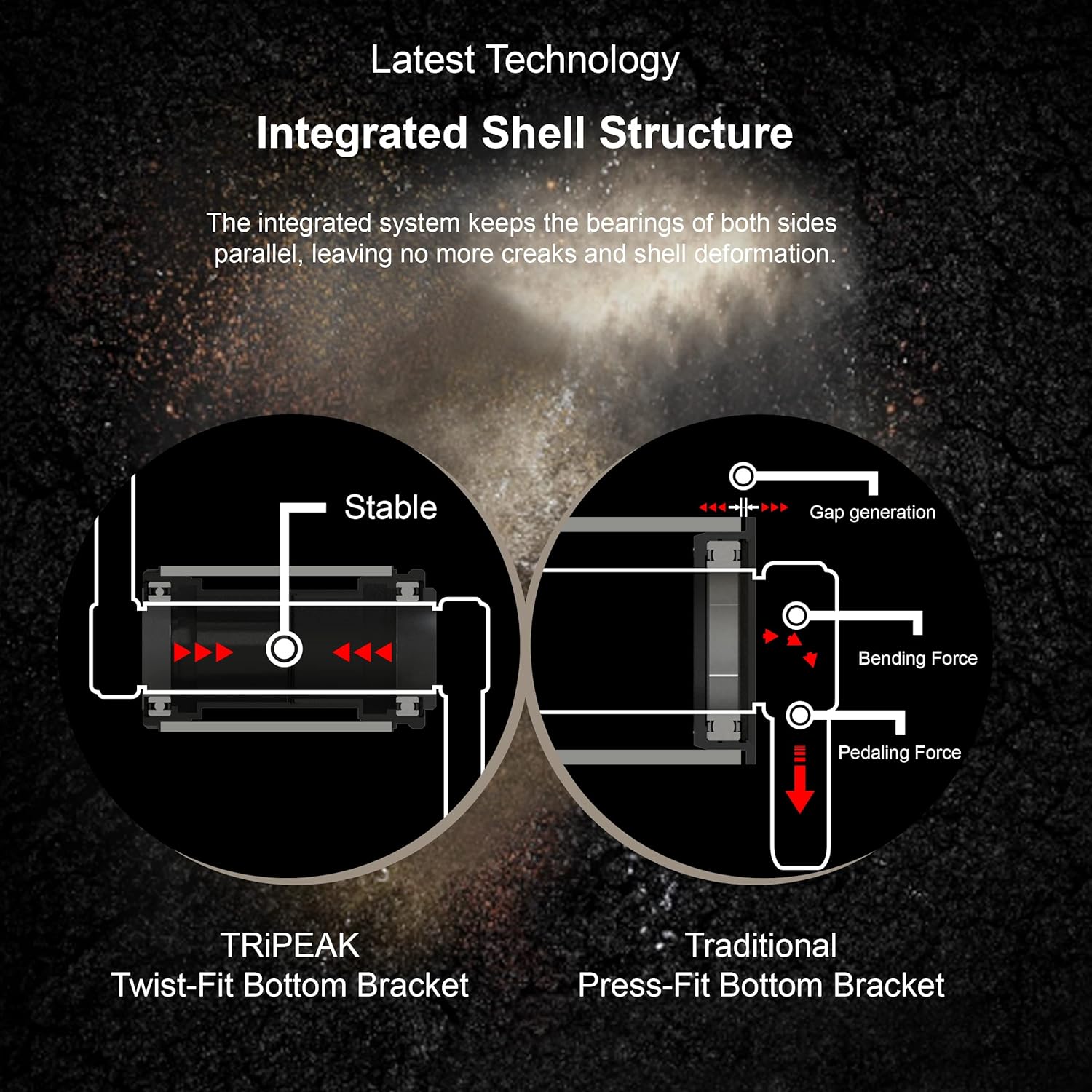

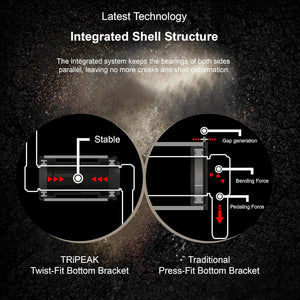

The TRiPEAK Twist-Fit Press Fit Bottom Bracket is engineered for riders who want a secure, creak-free alternative to traditional press-fit installations. Rather than relying on a straight press alone, TRiPEAK's patented Twist-Fit system combines a standard press-in step on the non-drive side with a twist-lock step on the drive side — spinning the cup until zero gap remains between the BB set and the frame shell. The result is a mechanically locked bearing cup that resists the loosening and creaking that plague conventional press-fit brackets. Compatible with Road and MTB frames running BB86, BB92, BB30, or PF30 shell standards, and designed specifically for 24mm Shimano spindles. Compatible brands include Shimano (Dura-Ace, Ultegra, 105, Tiagra, GRX), FSA, ROTOR, and RaceFace cranks with a 24mm spindle diameter.

Twist-Fit Installation Method

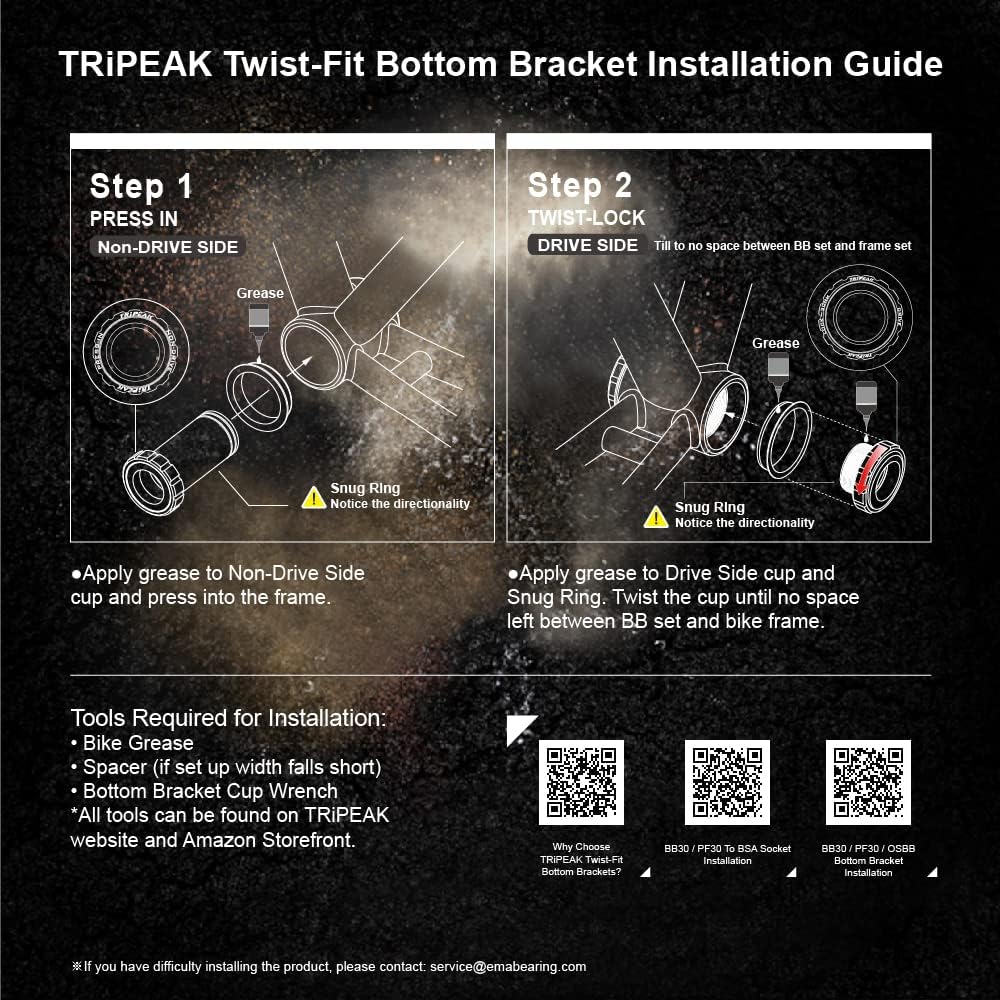

Installation is a two-step process as shown in the included guide:

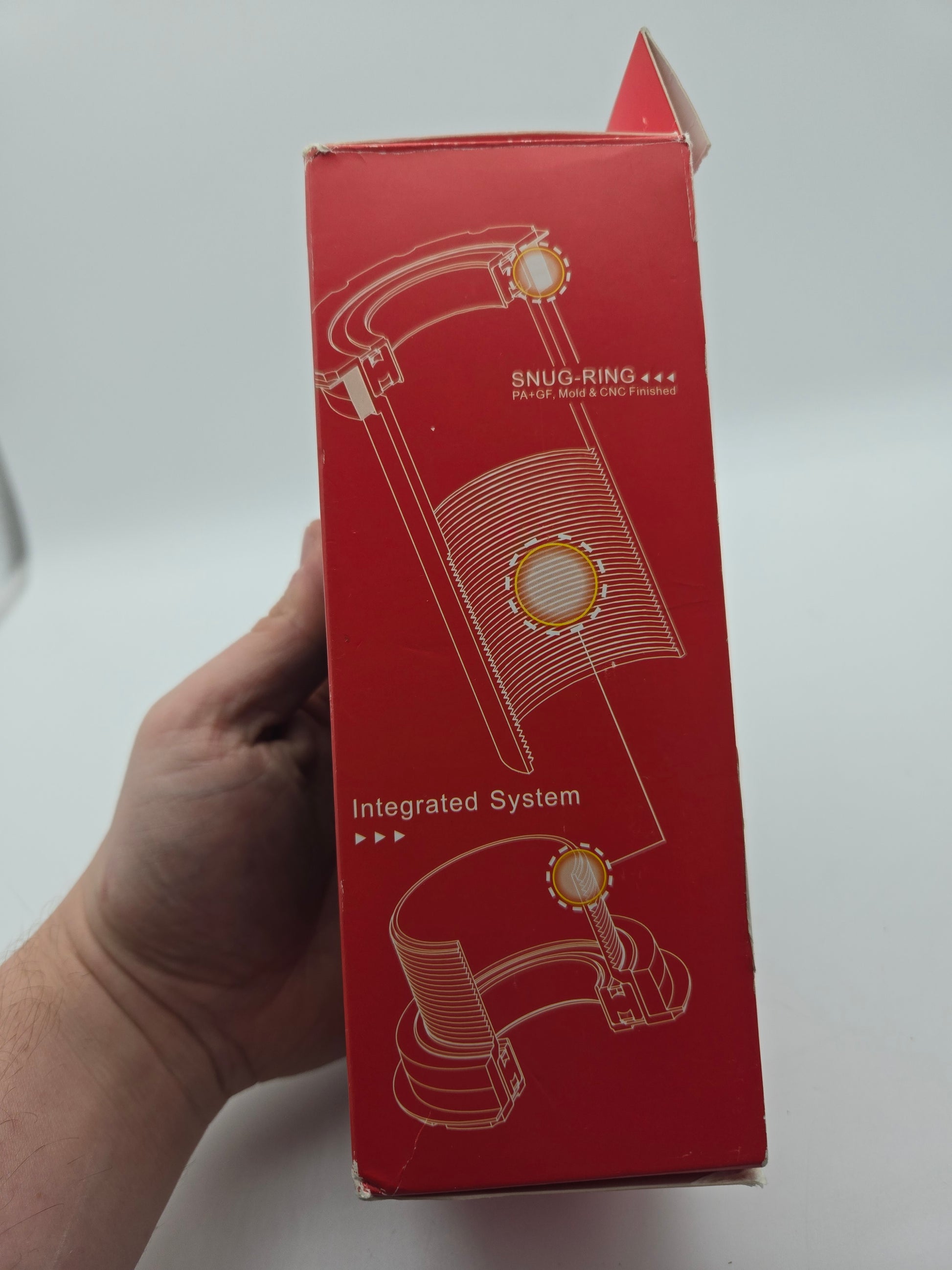

• Step 1 – Press In (Non-Drive Side): Apply grease to the non-drive cup and press into the frame, noting the directionality of the Snug Ring.
• Step 2 – Twist-Lock (Drive Side): Apply grease to the drive-side cup and Snug Ring, then twist the cup until no space remains between the BB set and the bike frame.

Tools required for installation: bike grease, a spacer (if shell width falls short), and a bottom bracket cup wrench. These are not included.

What's Included

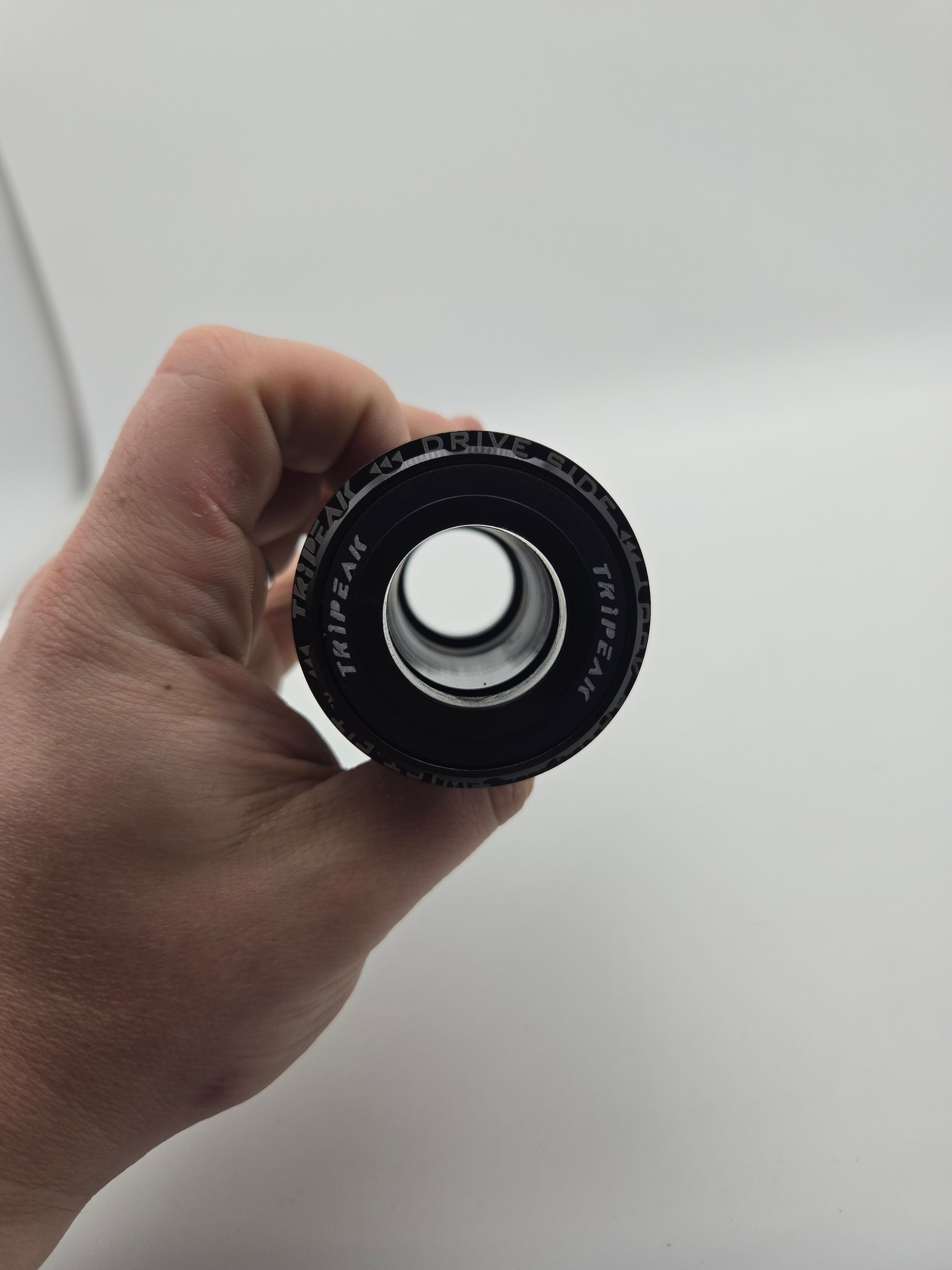

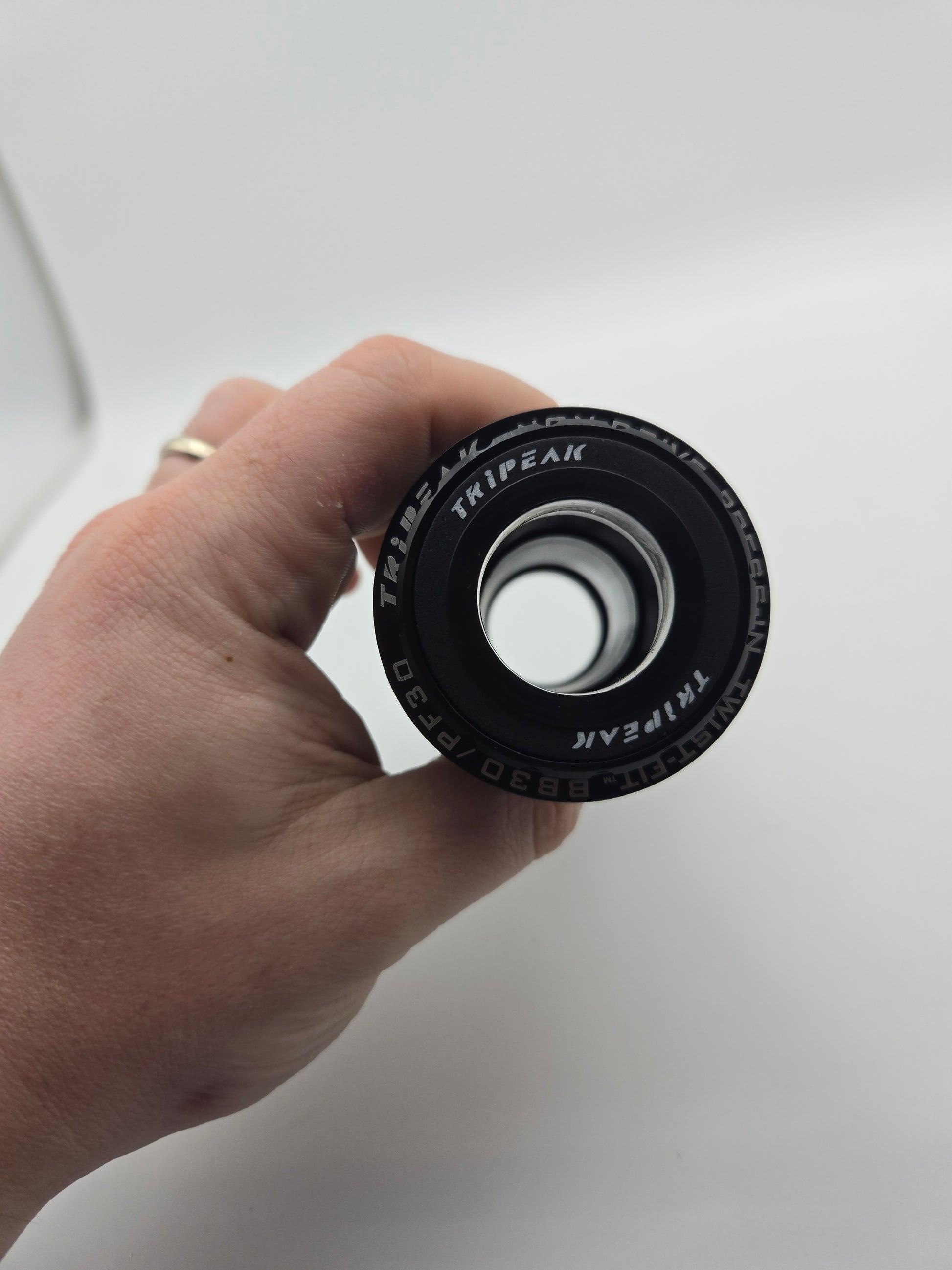

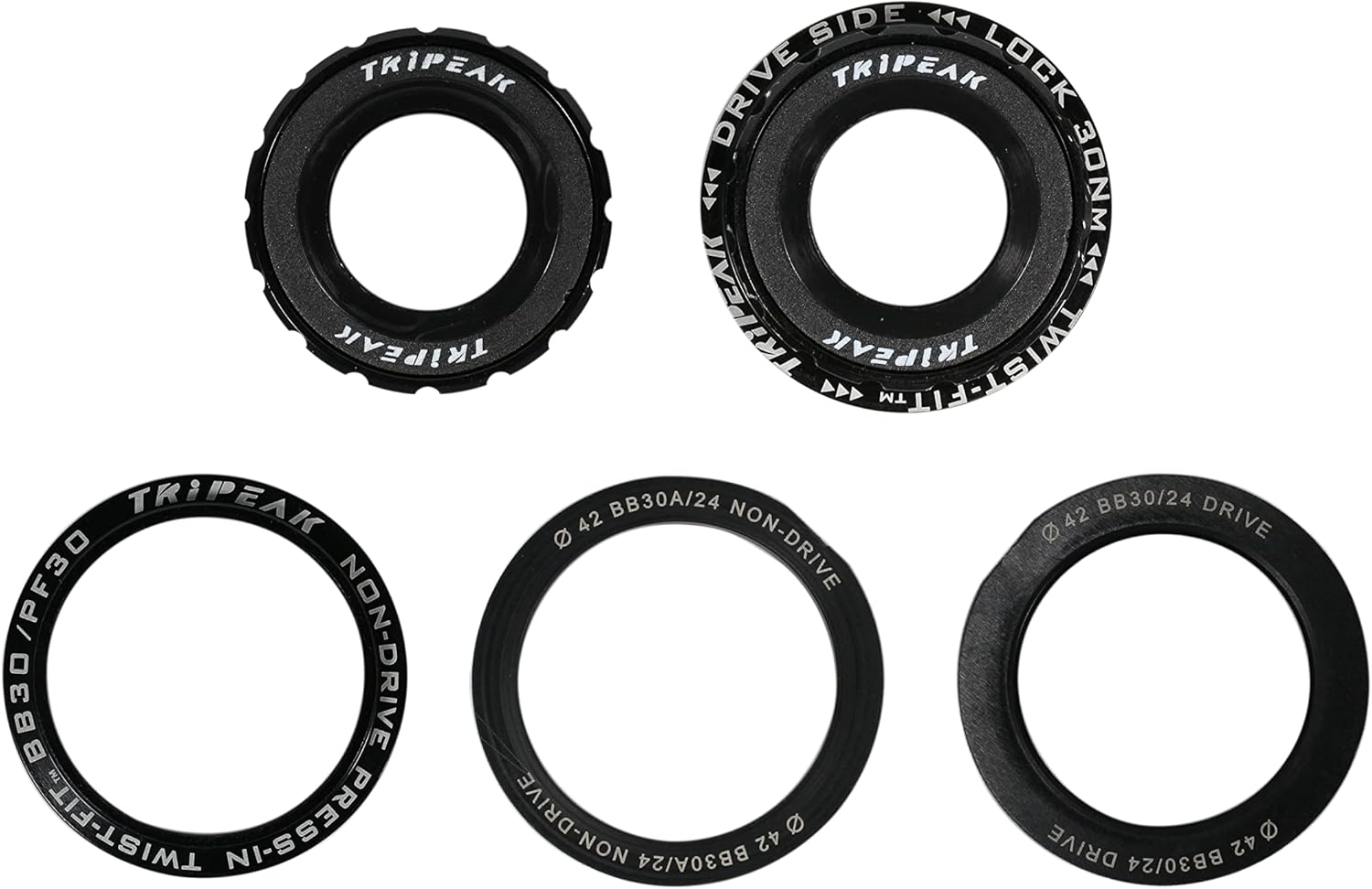

• 1 × TRiPEAK Twist-Fit Press Fit Bottom Bracket (drive-side and non-drive-side cups)
• Installation guide card

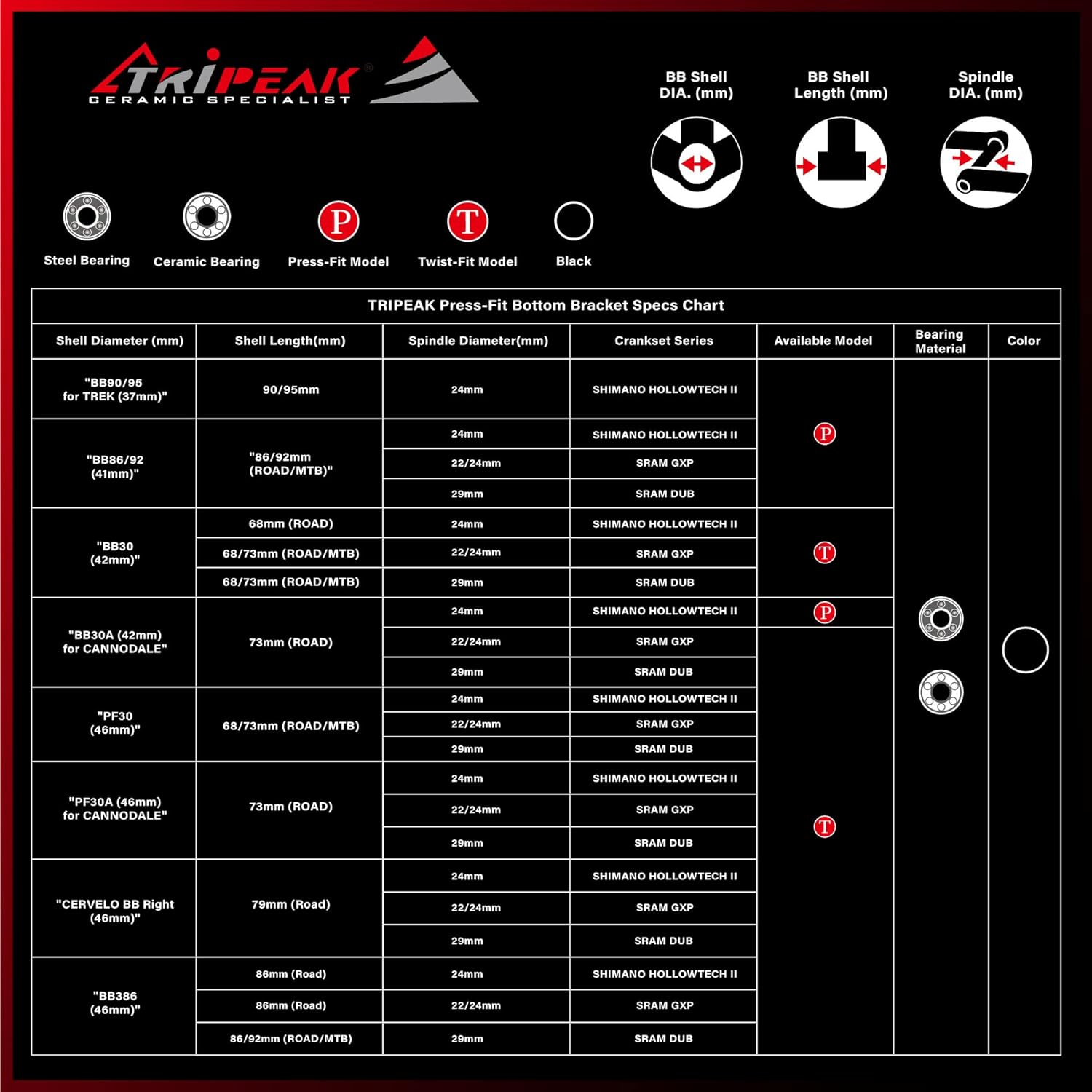

Specifications

• Brand: TRiPEAK
• Part Type: Bottom Bracket

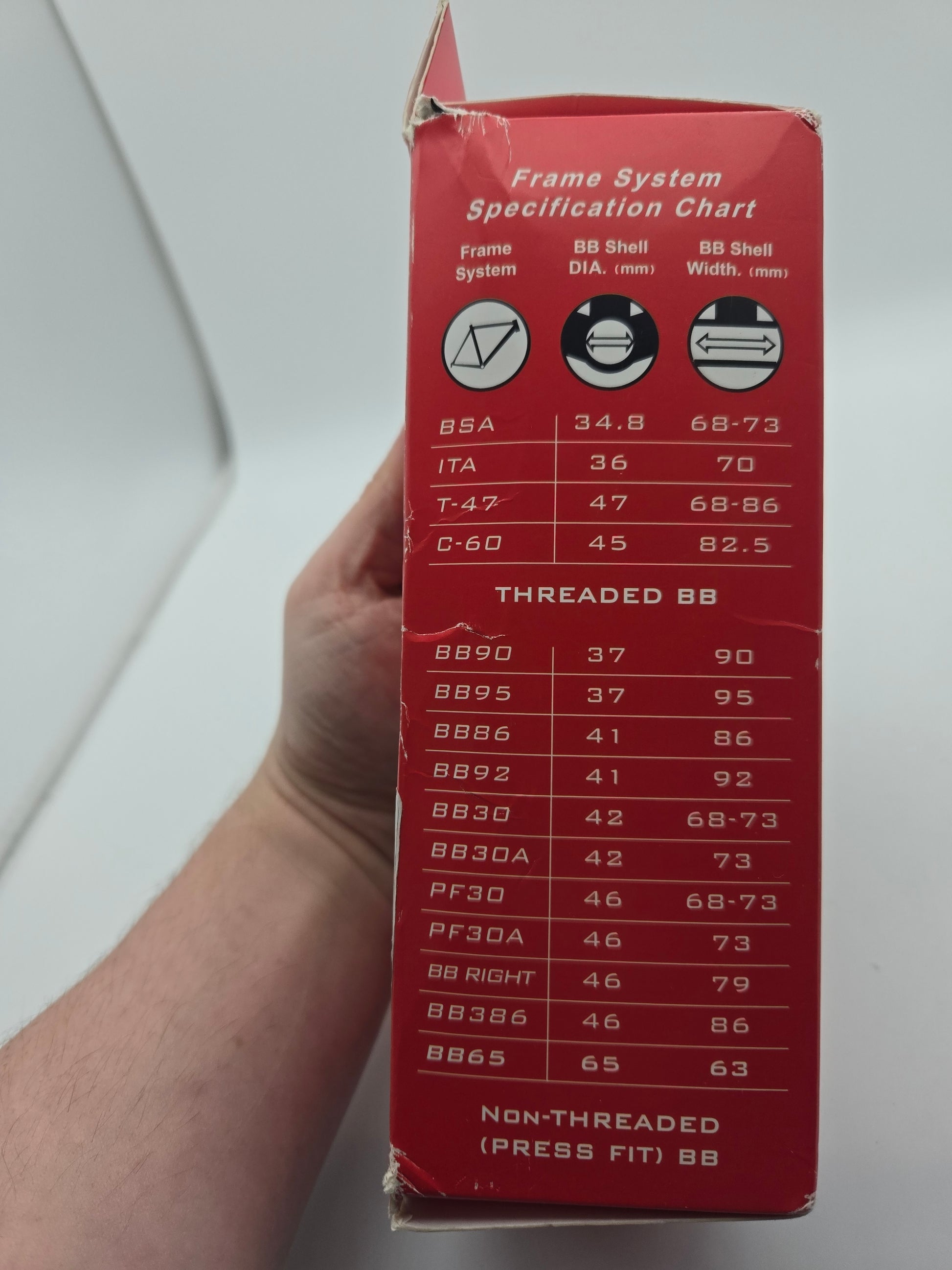

• Shell Standard: BB86 / BB92 / BB30 / PF30
• Spindle Diameter: 24mm
• Material: Steel
• Compatible Bike Types: Road, MTB
• Compatible Brands: Shimano, FSA, ROTOR, RaceFace
• Compatible Groupsets: Dura-Ace, Ultegra, 105, Tiagra, GRX, Hollowtech II
• Condition: Open box — untested, appears new

Because this is an open-box item, it has not been tested by our team. The unit visually appears new and uninstalled. Buyers should inspect and test upon receipt.
