Elejoy EY1800W Solar Panel Tester — MPPT Multimeter & Watt Meter

GRADE: B — Used - Good. Fully functional with normal wear. Visible cosmetic wear.

Condition: Used - Good. Fully functional with normal wear. Visible cosmetic wear.

The Elejoy EY1800W solar panel tester is a professional-grade MPPT multimeter built for field diagnostics. It measures power output, open circuit voltage, and short circuit current in real time. This portable solar tester is an essential tool for anyone maintaining or commissioning photovoltaic systems.

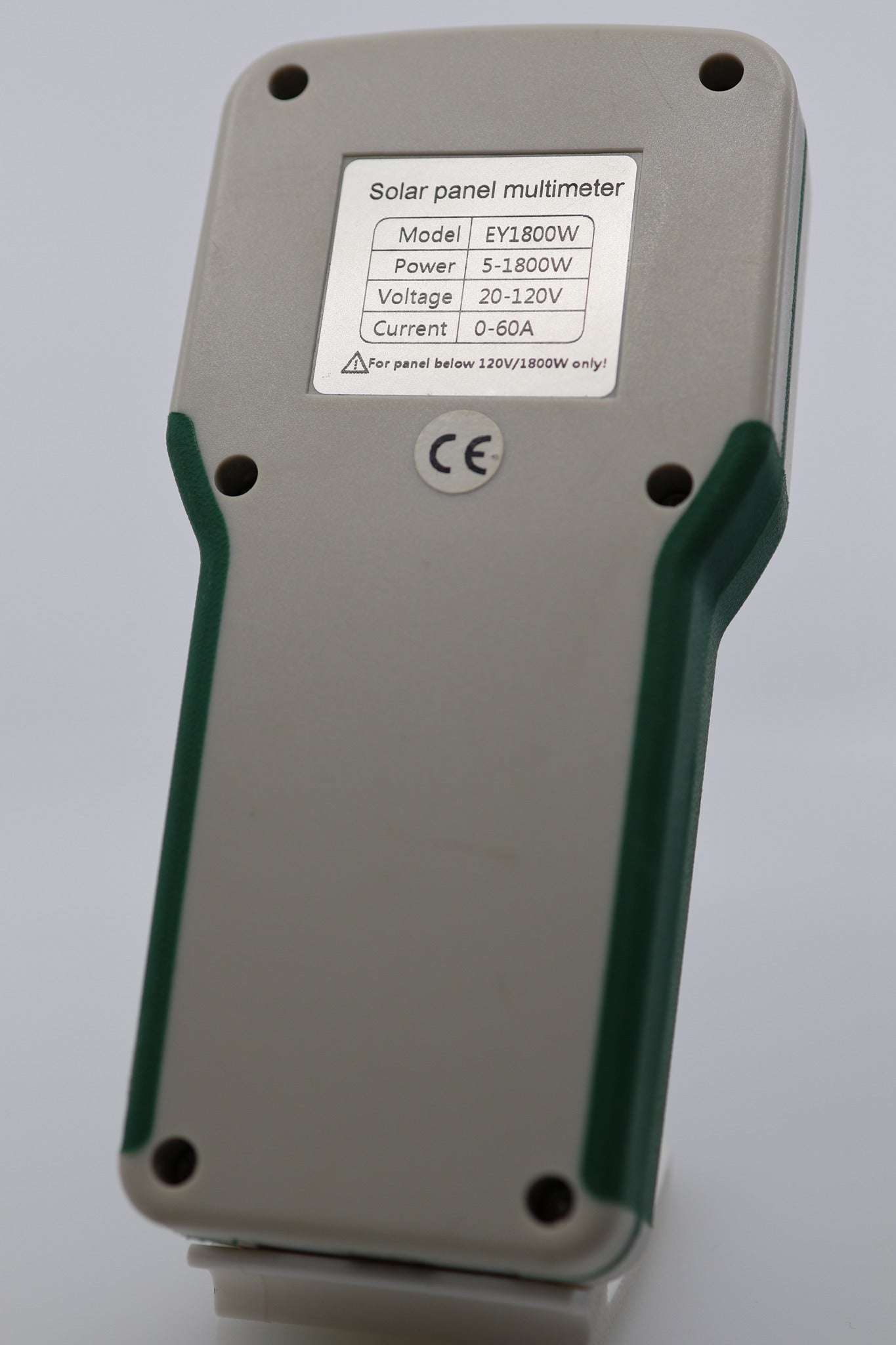

The EY1800W is rated for panels up to 1800W. It handles voltages from 20V to 120V DC. Current capacity spans 0 to 60A. These specs cover the vast majority of residential and small commercial solar arrays. The tester connects directly to a panel — no external batteries required. Power is drawn entirely from the panel under test. This makes it genuinely grab-and-go ready for rooftop or ground-mount work.

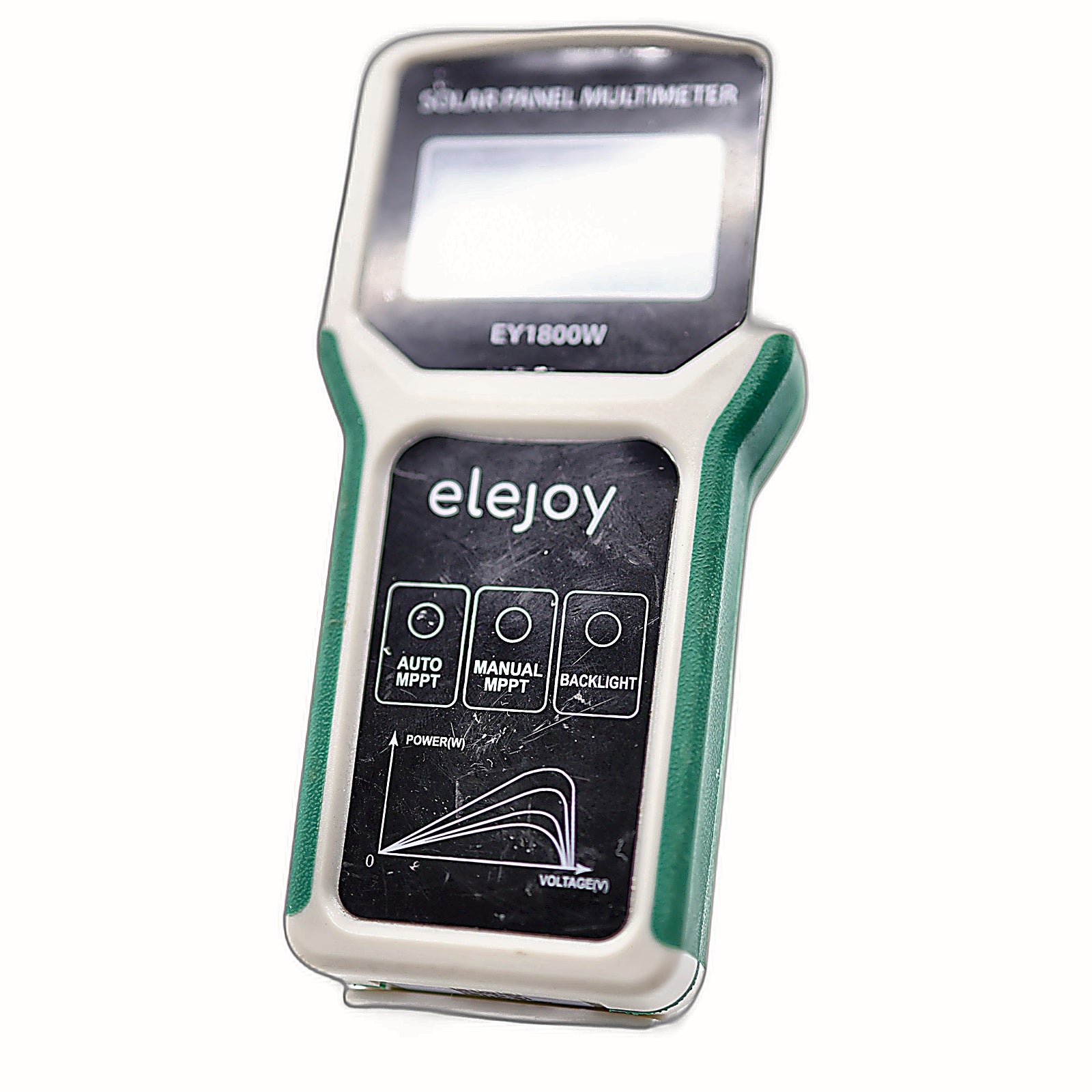

The front panel features three dedicated buttons. The AUTO MPPT button triggers an automatic sweep to find the maximum power point. The MANUAL MPPT button lets you step through the I-V curve yourself. The BACKLIGHT button illuminates the LCD for low-light conditions. The clear LCD readout displays voltage, current, and wattage simultaneously. Readings are stable and update in real time without flickering. The display is large enough to read comfortably in direct sunlight.

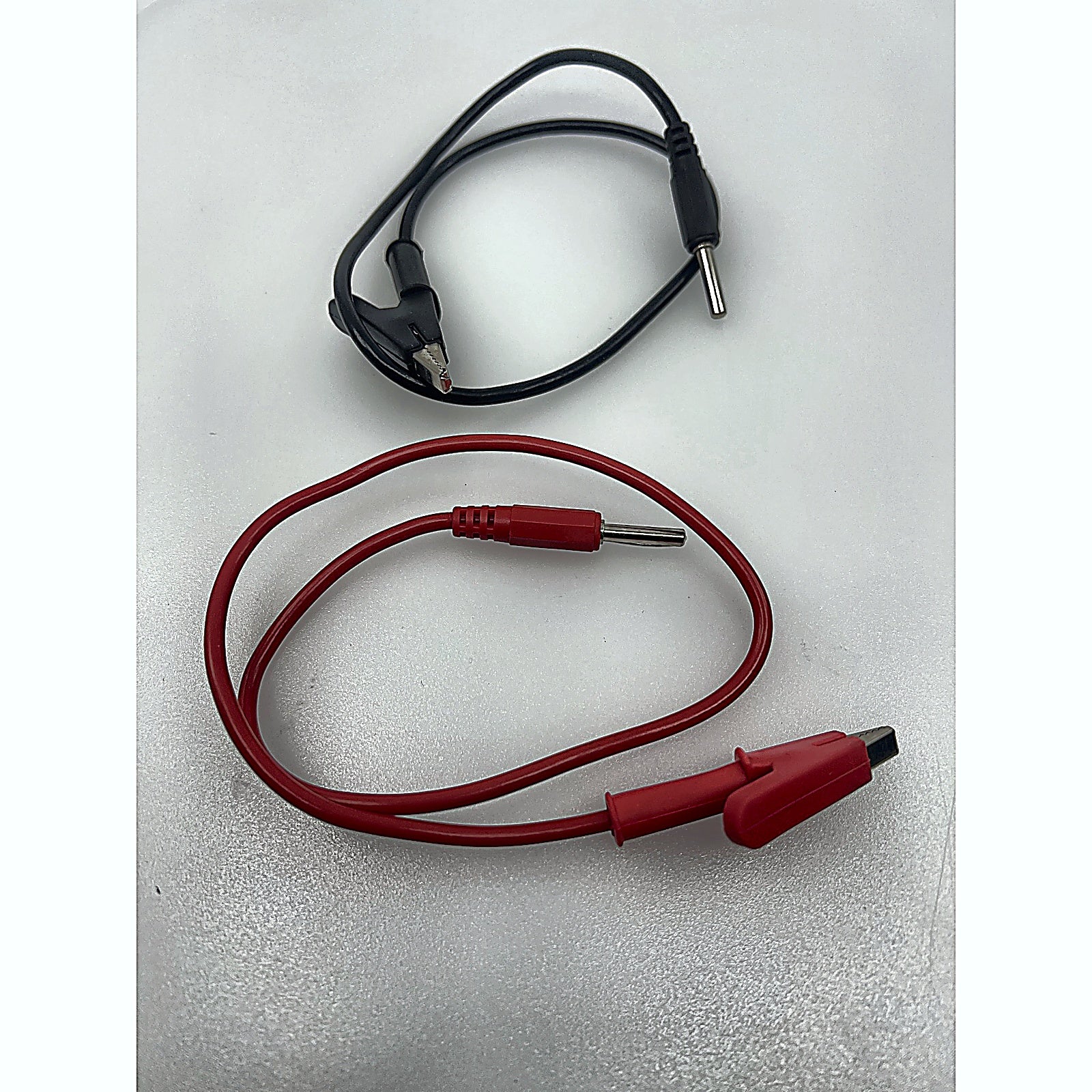

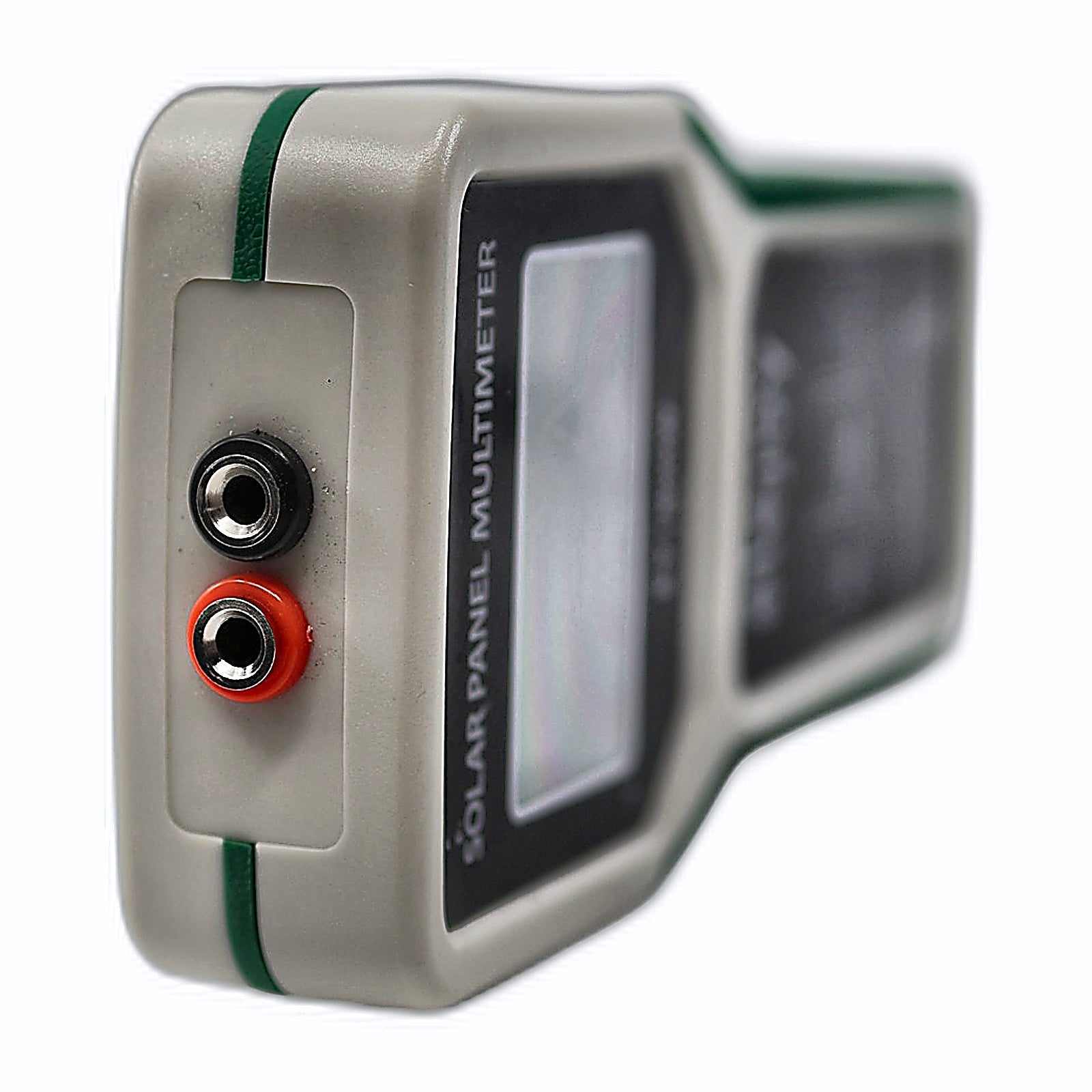

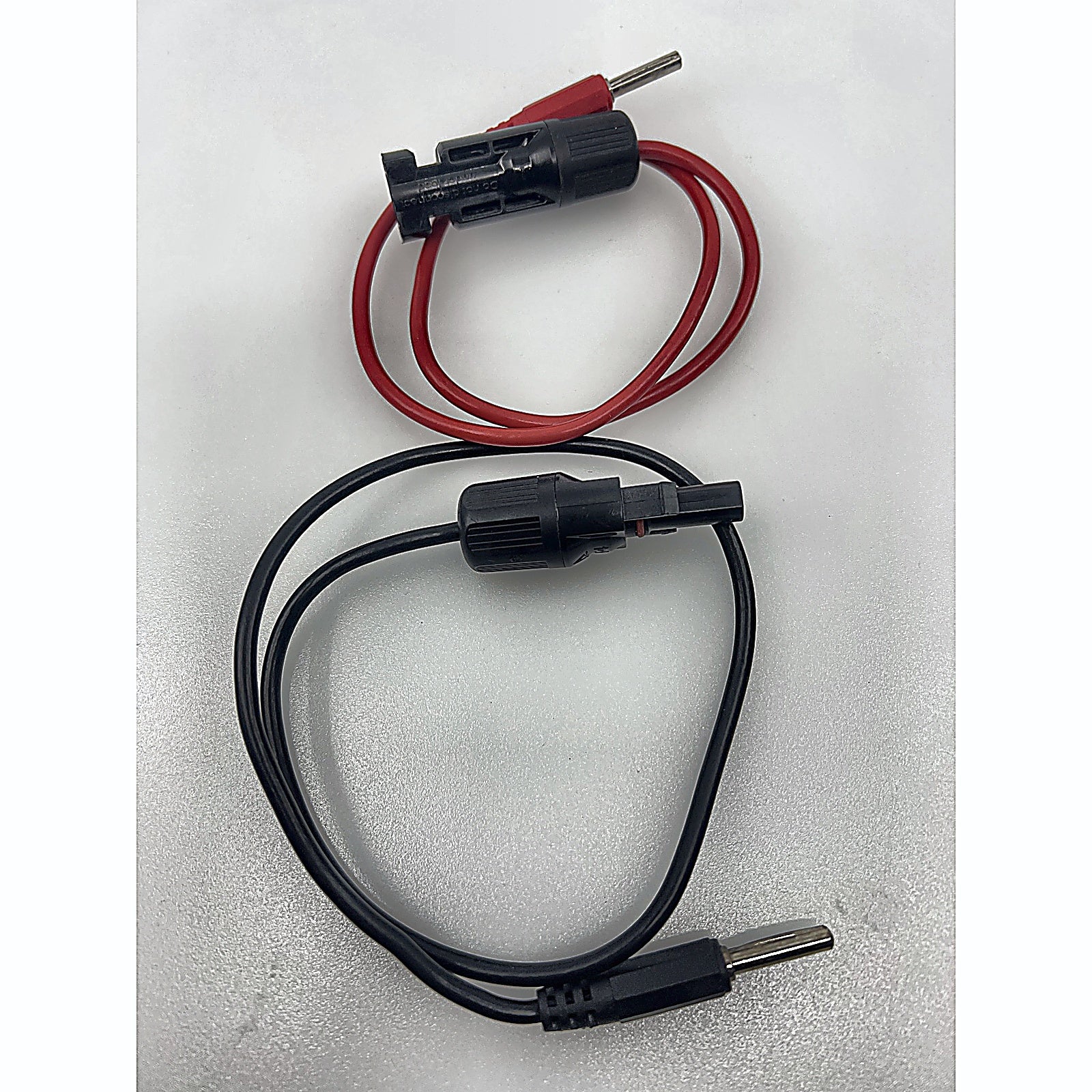

Connecting the tester to a panel is straightforward. The included MC-4 cables plug directly into standard PV connectors. Alligator clip cables offer an alternative connection method for bare wire terminals. Both cable sets use color-coded red and black conductors. The banana jack inputs on the side of the unit accept both connector types. Polarity is clearly marked to prevent reverse connection errors. The MC-4 connectors lock securely with an audible click. The alligator clips grip firmly and maintain a solid electrical contact.

Using the MPPT function gives you far more insight than a basic multimeter. A standard multimeter only measures Voc and Isc under open or short conditions. The EY1800W sweeps the full I-V curve to locate true Pmax. This is the actual power the panel delivers to a load. Comparing Pmax to the panel's nameplate rating reveals real-world efficiency. Degraded cells, shading losses, and wiring faults all show up clearly in the output. Solar installers use this data to validate new installations. Maintenance crews use it to identify underperforming panels in an array. The tester makes it easy to compare multiple panels side by side.

Condition: Used - Good condition — visible light scratches are present on the front panel face and button area. The LCD screen, housing structure, and all ports are fully intact. The unit powers on and operates without fault. All measurement functions — Voc, Isc, Pmax, and MPPT sweep — have been verified as working. The EVA carry case, MC-4 cables, alligator clip cables, and user manual are all present and in clean condition.

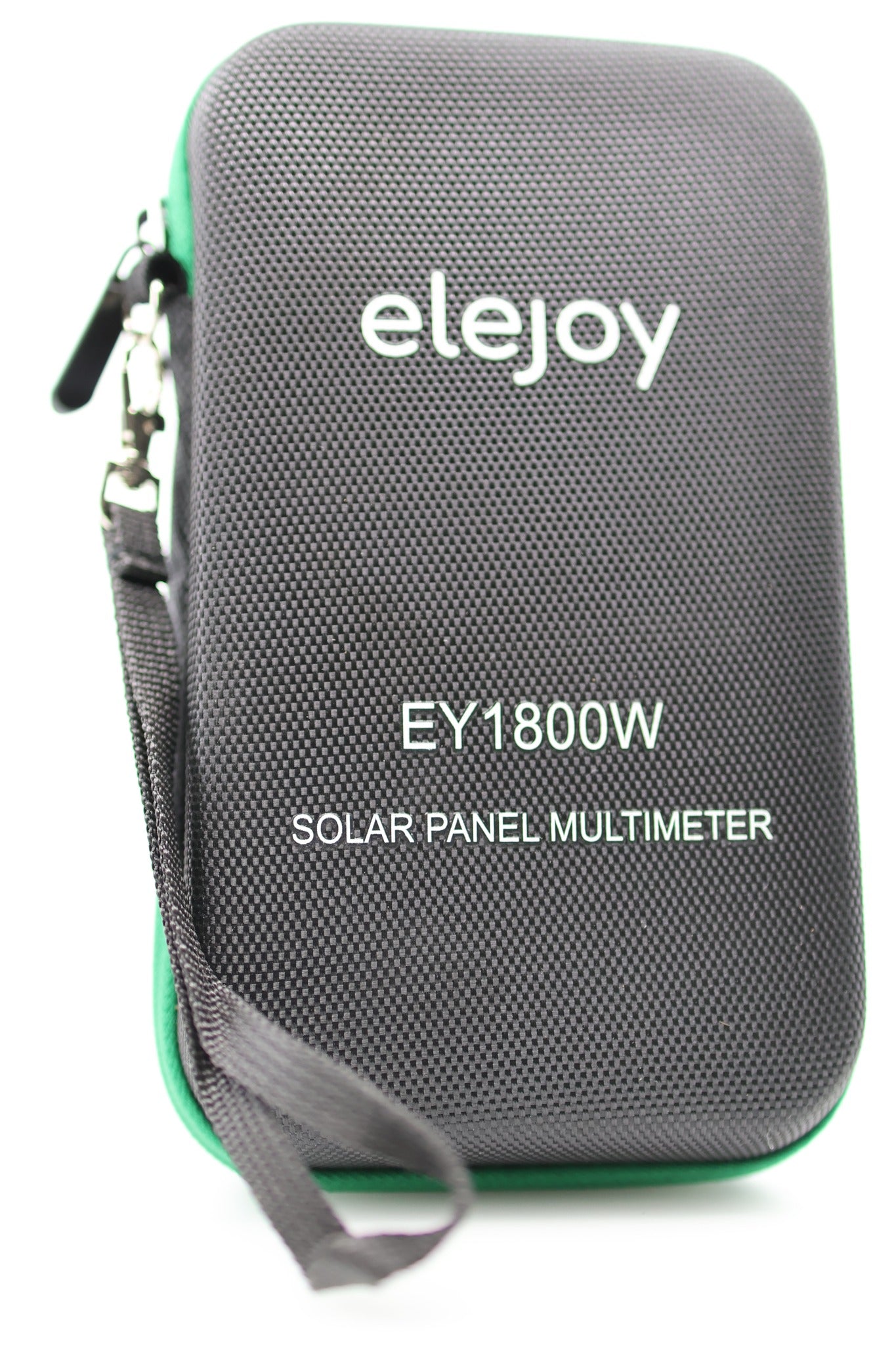

The EVA hard-shell carry case is a standout feature for field technicians. It zips closed to protect the tester and all accessories during transport. The molded interior keeps cables organized and prevents connector damage. The case is compact enough to fit in a tool bag alongside other instruments. The wrist strap makes it easy to carry up a ladder or across a roof. Elejoy designed the EY1800W with portability as a primary goal. The lightweight body and protective case reflect that design intent.

Learn more about how solar photovoltaic testing works on the Wikipedia Solar Panel reference page. Understanding I-V curve characteristics helps you get the most out of this solar tester.

Browse more professional-grade measuring and diagnostic instruments in our Explore our Tools Collection.

Frequently Asked Questions

Question 1: Does this solar panel tester require batteries to operate?

Answer 1: The EY1800W draws its operating power directly from the solar panel being tested. There are no internal batteries to charge or replace. Simply connect the MC-4 cables or alligator clips to the panel and the MPPT multimeter powers on automatically.

Question 2: What types of solar panels is the EY1800W compatible with?

Answer 2: The tester is designed for panels with a voltage rating of 20V to 120V DC and up to 60A current. This covers most standard residential monocrystalline and polycrystalline solar panels. The manufacturer specifies it should not be used on systems exceeding 120V or 1800W output.

Question 3: What is the difference between AUTO MPPT and MANUAL MPPT modes?

Answer 3: AUTO MPPT mode automatically sweeps the full I-V curve and reports the maximum power point without any manual input. MANUAL MPPT mode lets the technician step through the curve incrementally for closer inspection of specific operating points. Both modes display Pmax, voltage at Pmax, and current at Pmax on the LCD screen.

Question 4: What accessories are included with this used tester?

Answer 4: This unit ships with the complete original accessory set. Included items are the MC-4 connecting cables, alligator clip cables, the EVA hard-shell carry case, and the printed user manual. All accessories were inspected and confirmed to be present and functional before listing.

Question 5: Can I use this tester to diagnose a faulty panel in an existing array?

Answer 5: The EY1800W is well suited for that exact purpose. By measuring and comparing Pmax values across individual panels, a technician can quickly identify which panel is underperforming relative to the others. This MPPT multimeter approach is far more accurate than voltage-only testing for finding degraded cells or partial shading issues.

The Elejoy EY1800W solar panel tester is a smart buy for both professional installers and serious DIY solar enthusiasts. At a fraction of the cost of new, this used-good unit delivers the same reliable MPPT measurement capability. The complete accessory kit means you can take it directly to a job site without sourcing any additional cables or adapters.

Solar energy system owners benefit greatly from having a dedicated solar tester on hand. Periodic testing reveals panel degradation before it significantly impacts system output. Catching a failing panel early can prevent energy loss and protect downstream charge controllers or inverters. The EY1800W makes that routine testing fast, accurate, and completely battery-free.

Whether you are verifying new panel output at commissioning or troubleshooting an underperforming rooftop array, this MPPT multimeter gives you the data you need. The portable form factor, rugged EVA case, and no-battery operation make it one of the most practical solar diagnostic tools available at this price point.
