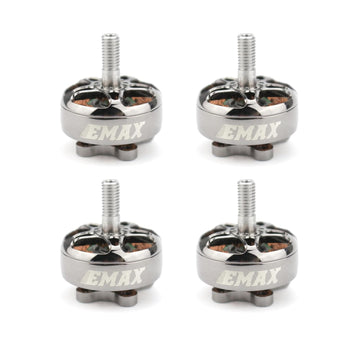

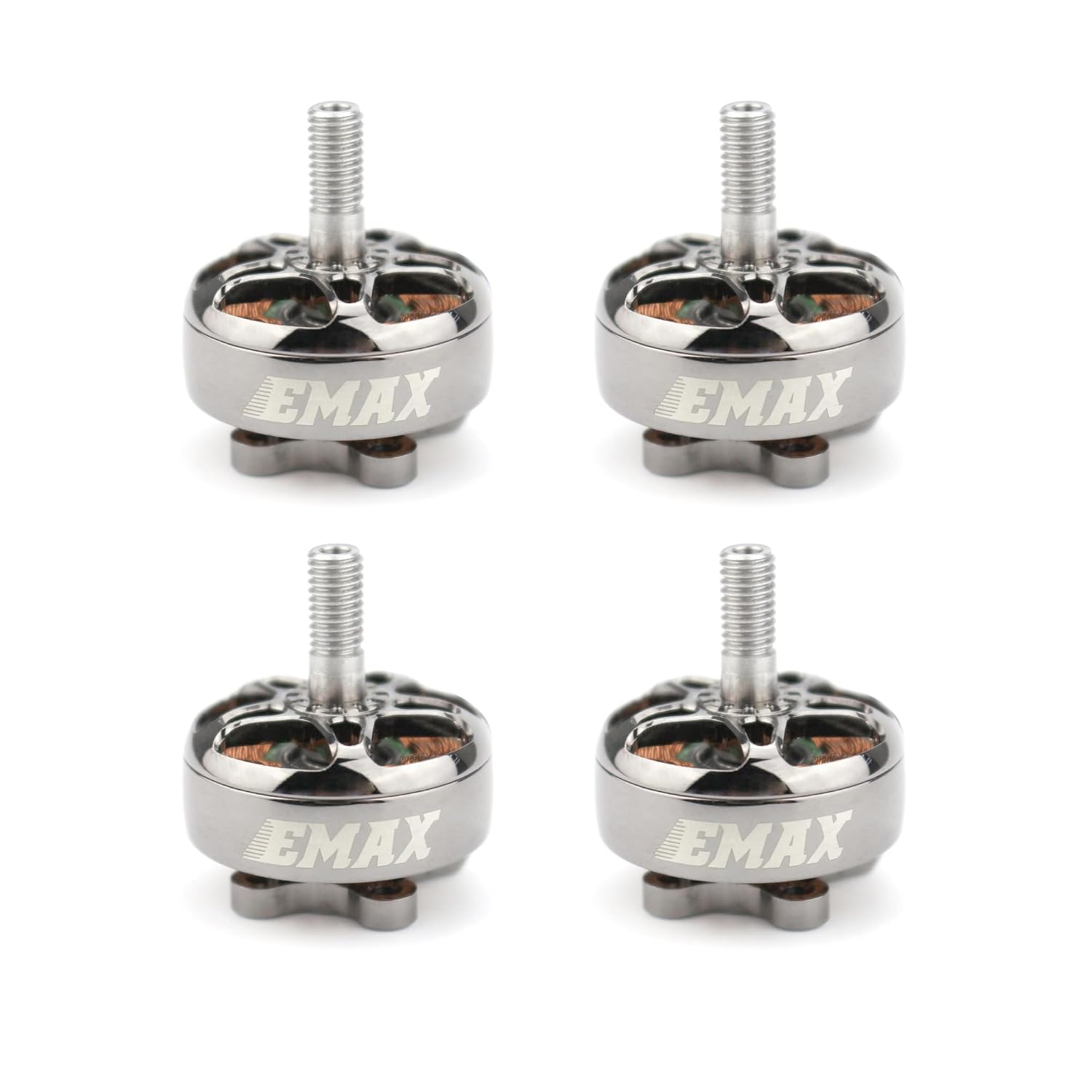

Emax ECO II Series 2306 1700KV Brushless Motors for FPV Racing Drones - Set of 4

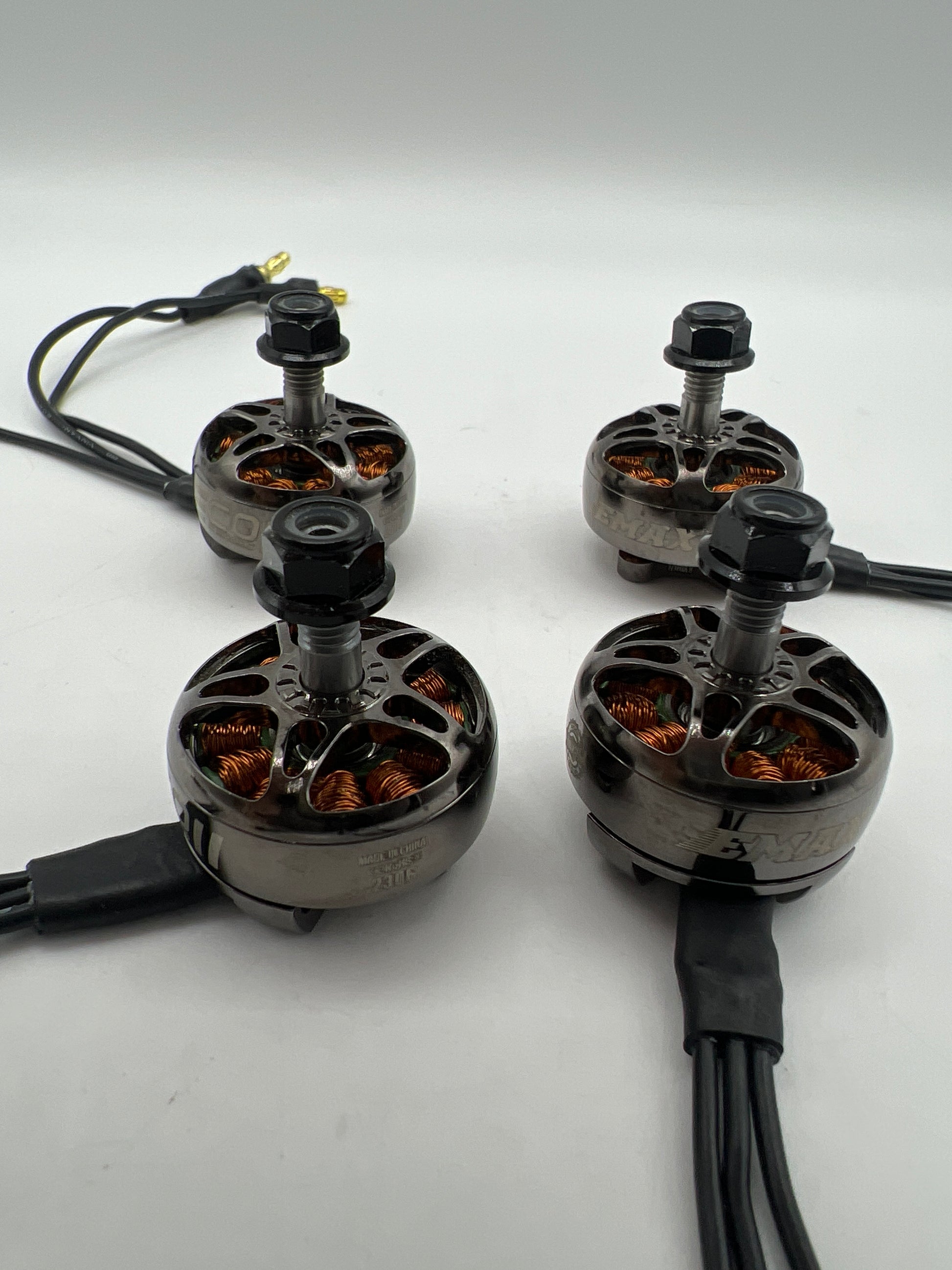

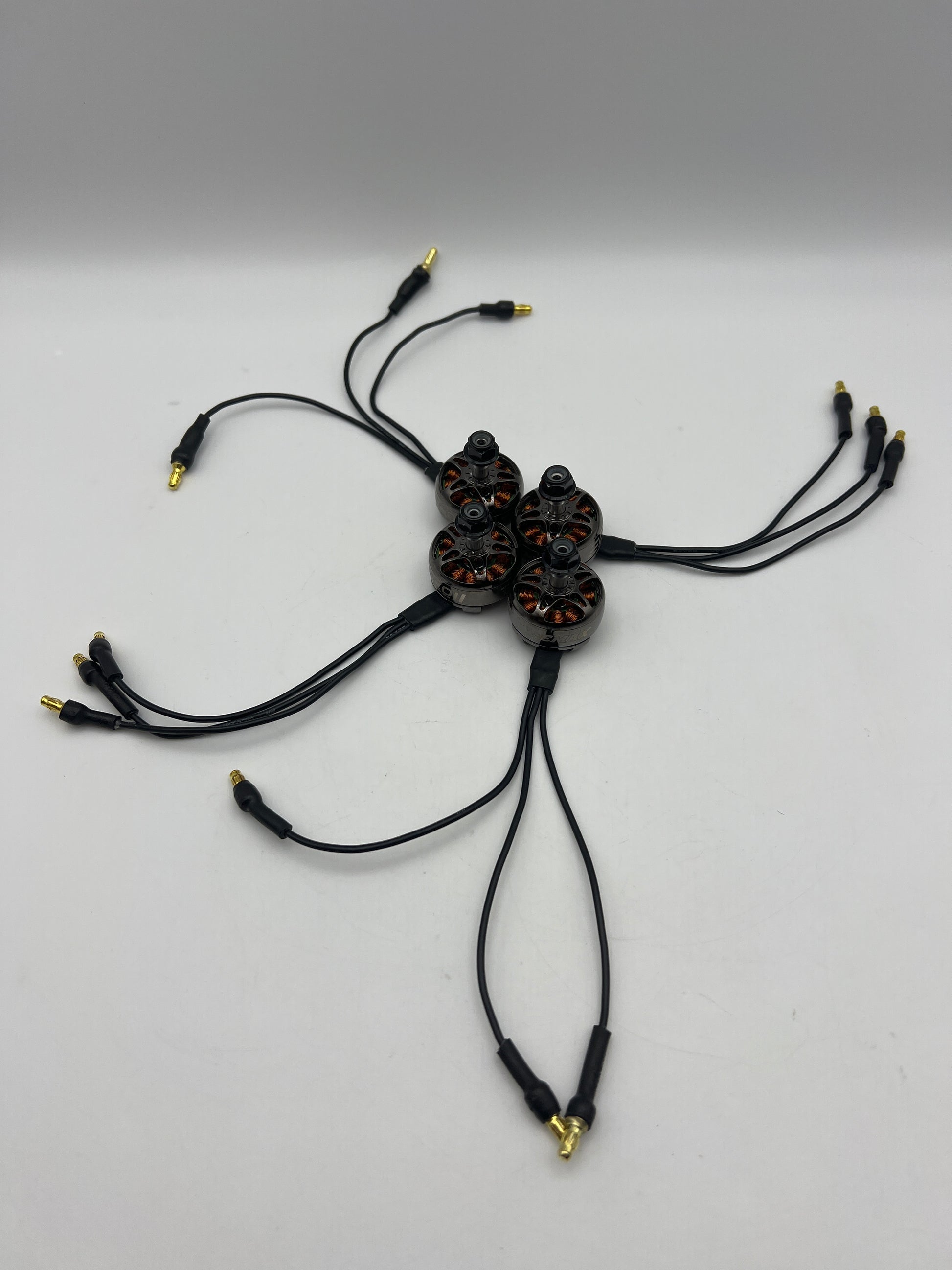

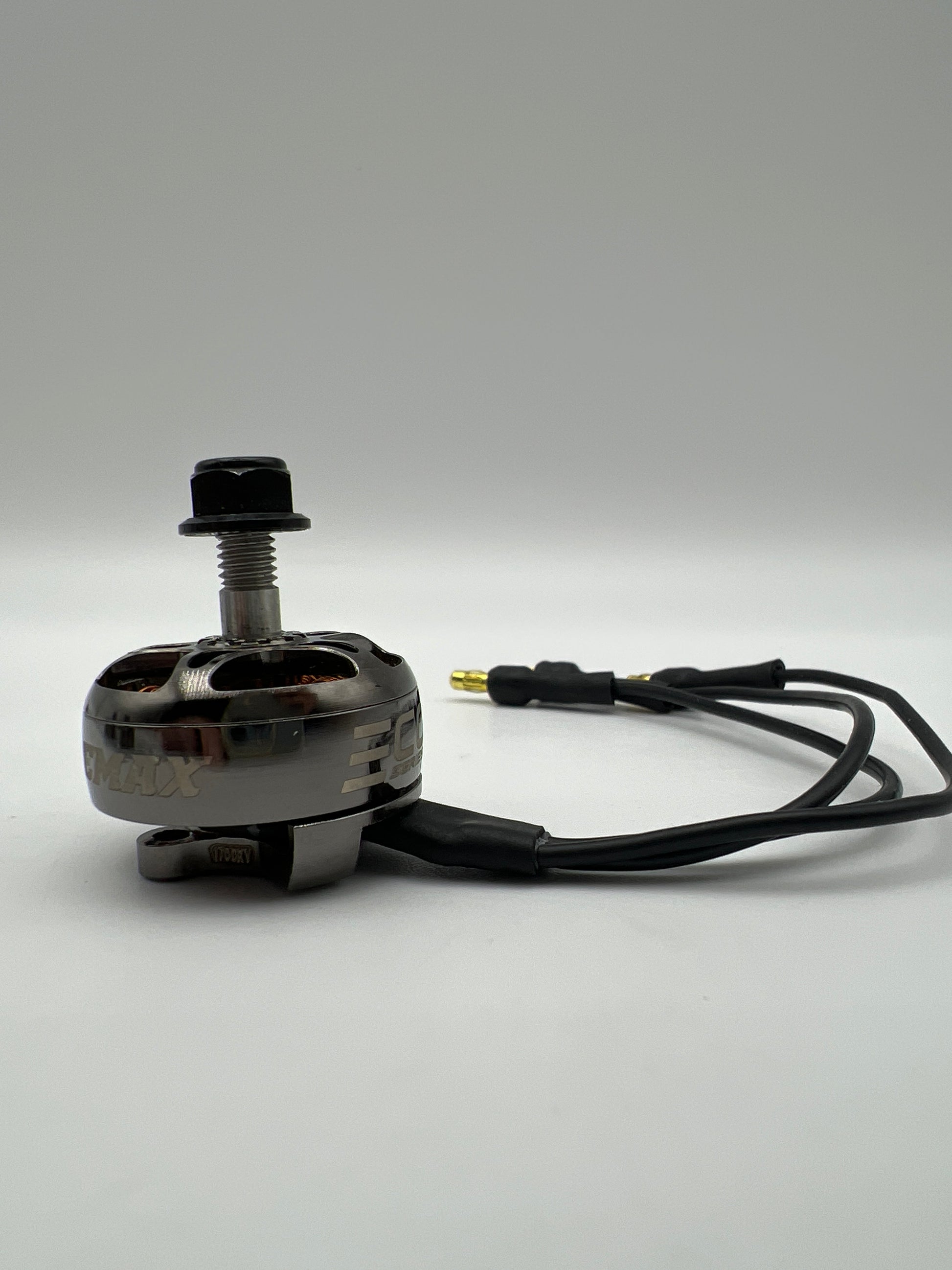

Condition: Like New, No Sign Of Damage, All 4 Included

Enhance your FPV racing drone's performance with the Emax ECO II Series 2306 1700KV Brushless Motors. This set of four motors is designed to deliver exceptional power, efficiency, and durability, making them an ideal choice for both competitive racers and hobbyists seeking reliable and high-performing components.

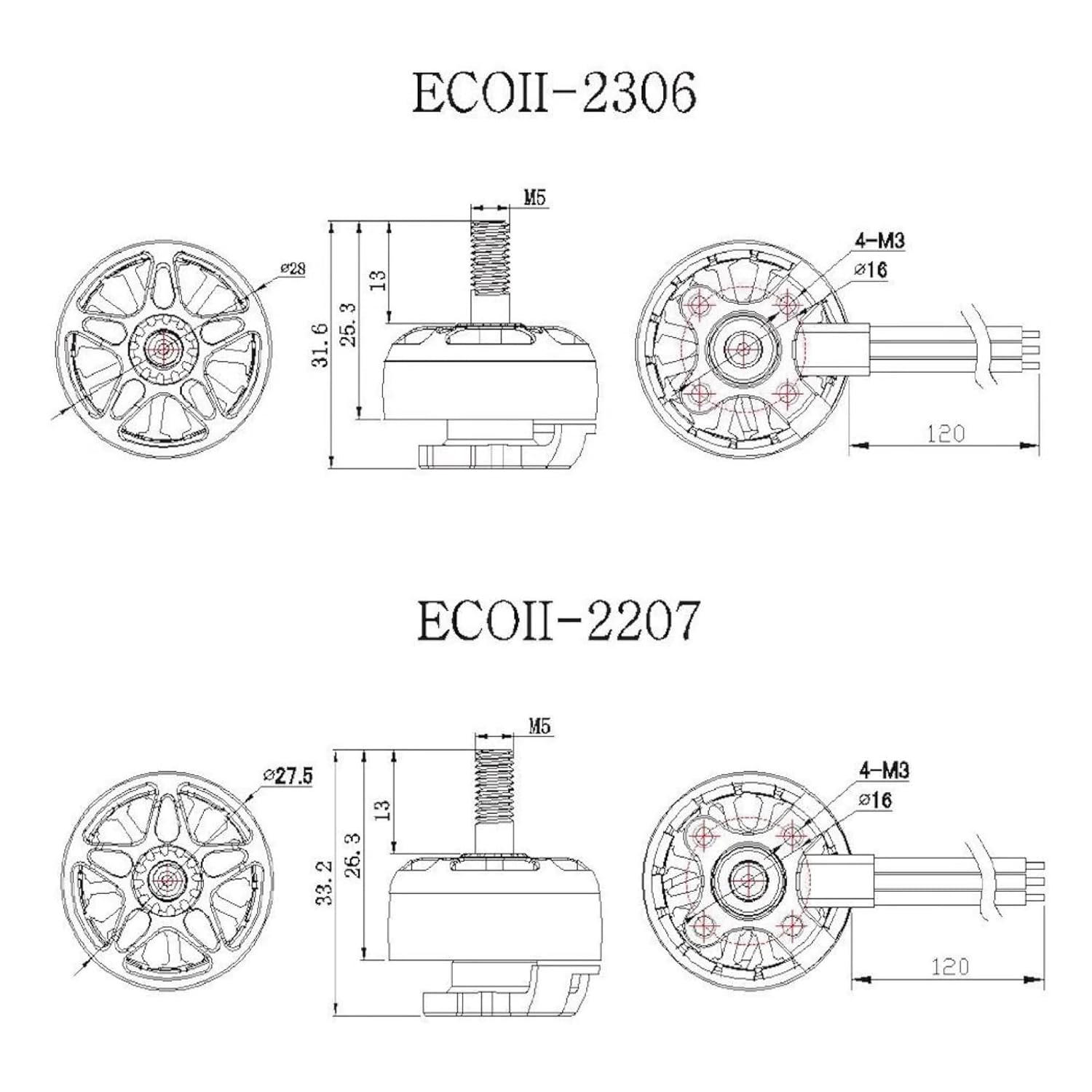

The Emax ECO II Series 2306 motors feature a robust 12N14P framework, ensuring a solid and stable structure that can withstand the rigors of intense flight sessions. With a length of 31.6mm and a diameter of 28mm, these motors are compact yet powerful, fitting seamlessly into various drone configurations. The 1700KV rating indicates that the motors will spin at approximately 1700 revolutions per minute per volt applied, providing a balanced combination of speed and torque suitable for a wide range of FPV racing applications.

One of the standout features of the ECO II Series is the use of upgraded N52SH curved arc magnets. These high-quality magnets create a tighter air gap, resulting in improved performance and more efficient power delivery. This enhancement allows for a more responsive throttle and higher RPMs, giving pilots the flexibility to meet the demands of any racetrack or flight scenario. Additionally, the motors are equipped with precision EZO 9mm bearings, ensuring unparalleled smooth operation and reducing friction for increased longevity.

Durability is a key consideration in the design of the Emax ECO II Series 2306 motors. The rounded bell design and stronger attachment points enhance the structural integrity, making the motors more resistant to impacts and vibrations. The fully mirror-polished finish not only adds a sleek and modern aesthetic but also provides an extra layer of protection against environmental factors. The steel shaft and anodized components further contribute to the overall durability, ensuring that these motors can handle the stresses of high-speed racing and freestyle maneuvers.

Installation and compatibility are made easy with the 16x16mm motor mounting pattern, which is standard for many FPV racing drones. The motors come with a prop adapter shaft thread of M5 and a bearing shaft of 4mm, accommodating a variety of propellers ranging from 5" to 5.5". The inclusion of 120mm 20 AWG silicone wires allows for flexible and straightforward wiring, reducing the hassle during assembly and maintenance.

In terms of performance specifications, the Emax ECO II Series 2306 1700KV motors are compatible with 3-6S LiPo batteries, offering versatility in power options. The weight of each motor without silicone wires is approximately 30.4g, contributing to a lightweight setup that doesn't compromise on power. The multi-strand winding technique used in these motors enhances efficiency and heat dissipation, ensuring consistent performance even during extended flight sessions.

For pilots seeking a comprehensive package, this set includes all necessary mounting hardware: five M3x8mm screws, five M3x7mm screws, five M3x6mm screws, one aluminum M5 nylock nut, and one washer and screw for the shaft. This complete set ensures that you have everything needed for a secure and reliable installation.

In summary, the Emax ECO II Series 2306 1700KV Brushless Motors offer a perfect blend of performance, durability, and ease of use. Whether you're building a new FPV racing drone or upgrading your current setup, these motors provide the power and reliability needed to excel in the fast-paced world of drone racing.

Frequently Asked Questions (FAQ)

• Question: What type of drones are the Emax ECO II Series 2306 1700KV motors suitable for?
  Answer: The Emax ECO II Series 2306 1700KV motors are specifically designed for FPV racing drones. Their high-performance specifications and durable construction make them ideal for competitive racing and freestyle flying. The 1700KV rating provides a balanced combination of speed and torque, suitable for various racing scenarios and flight styles.
• Question: Can these motors be used with different battery configurations?
  Answer: Yes, the Emax ECO II Series 2306 1700KV motors are compatible with 3-6S LiPo batteries. This compatibility offers pilots flexibility in choosing their power setups based on performance requirements and flight duration preferences. It's important to ensure that other components in your drone, such as the ESCs and flight controller, are also compatible with the chosen battery configuration.
• Question: What propeller sizes are recommended for these motors?
  Answer: The Emax ECO II Series 2306 1700KV motors are designed to work optimally with propellers ranging from 5" to 5.5" in diameter. Using propellers within this size range ensures efficient power delivery and stable flight characteristics. It's advisable to select propellers that match your specific flight goals, whether it's for speed, agility, or endurance.
• Question: How do the N52SH arc magnets improve motor performance?
  Answer: The N52SH arc magnets used in the Emax ECO II Series 2306 motors create a tighter air gap between the stator and rotor. This design enhances magnetic flux, resulting in more efficient power conversion and improved throttle response. Pilots will notice quicker acceleration and higher top-end speeds, which are crucial for competitive racing and dynamic flight maneuvers.
• Question: Are these motors suitable for beginners in FPV racing?
  Answer: While the Emax ECO II Series 2306 1700KV motors are designed with high performance in mind, they are also user-friendly and suitable for pilots at various skill levels. Beginners can benefit from their durability and reliability, which can withstand the learning curve associated with FPV racing. Additionally, the motors' balanced performance characteristics make them a good choice for those looking to improve their flying skills.

In conclusion, the Emax ECO II Series 2306 1700KV Brushless Motors stand out as a top choice for FPV racing enthusiasts seeking a combination of performance, durability, and ease of use. Their advanced design features, including the N52SH arc magnets and precision bearings, contribute to a superior flying experience. Whether you're competing in races or enjoying freestyle flights, these motors provide the reliability and power needed to elevate your drone's capabilities.

For those interested in exploring more options and accessories for their FPV racing drones, Explore our electronics Collection. This collection offers a wide range of products to enhance your drone's performance and ensure you have the best equipment for your flying adventures.

For additional information and technical details, you can visit the official Emax website: Emax ECO II Series 2306 Motors. This resource provides comprehensive specifications and insights to help you make an informed decision about your drone components.

In summary, the Emax ECO II Series 2306 1700KV Brushless Motors offer a perfect blend of performance, durability, and ease of use. Whether you're building a new FPV racing drone or upgrading your current setup, these motors provide the power and reliability needed to excel in the fast-paced world of drone racing.
