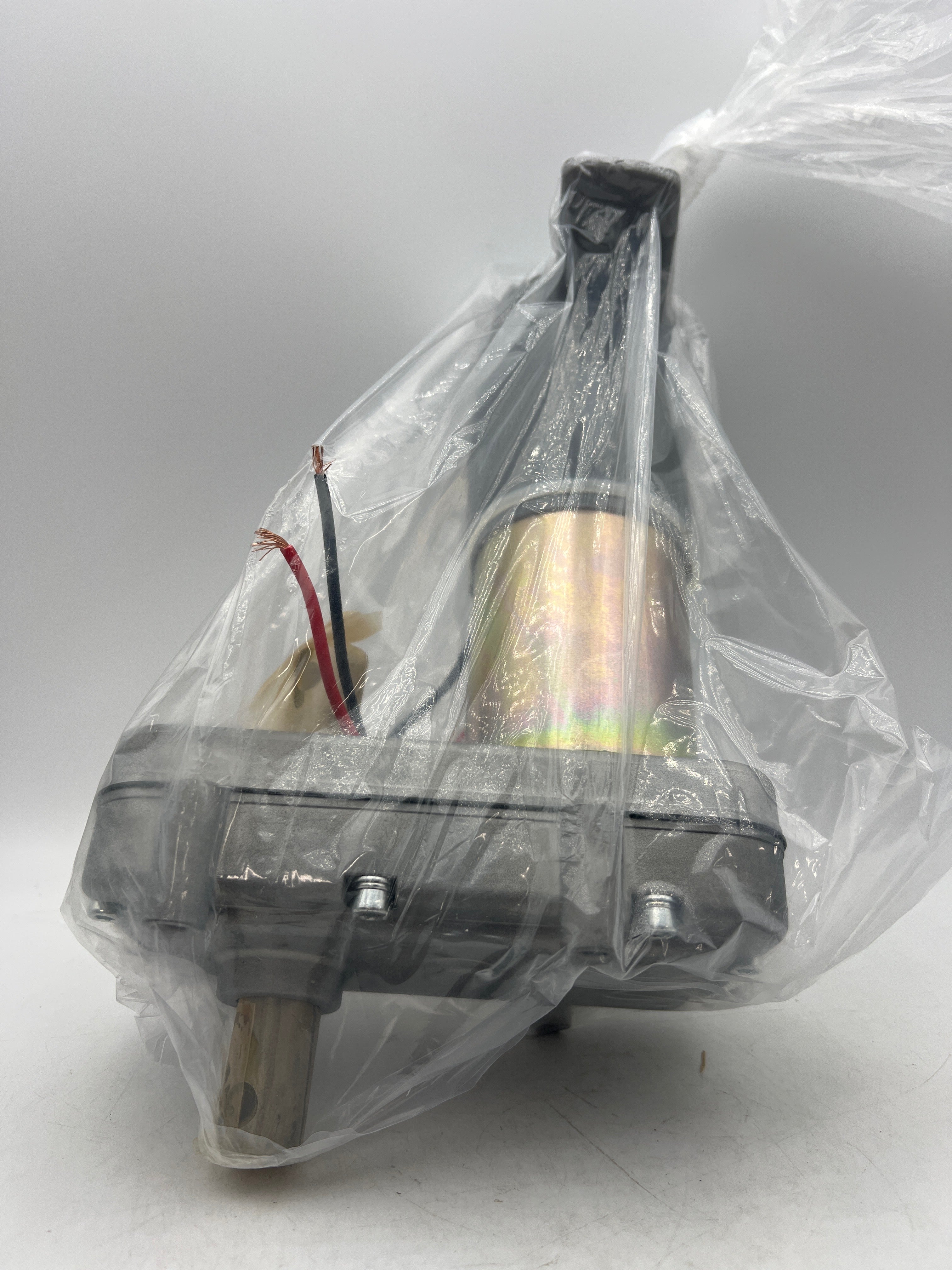

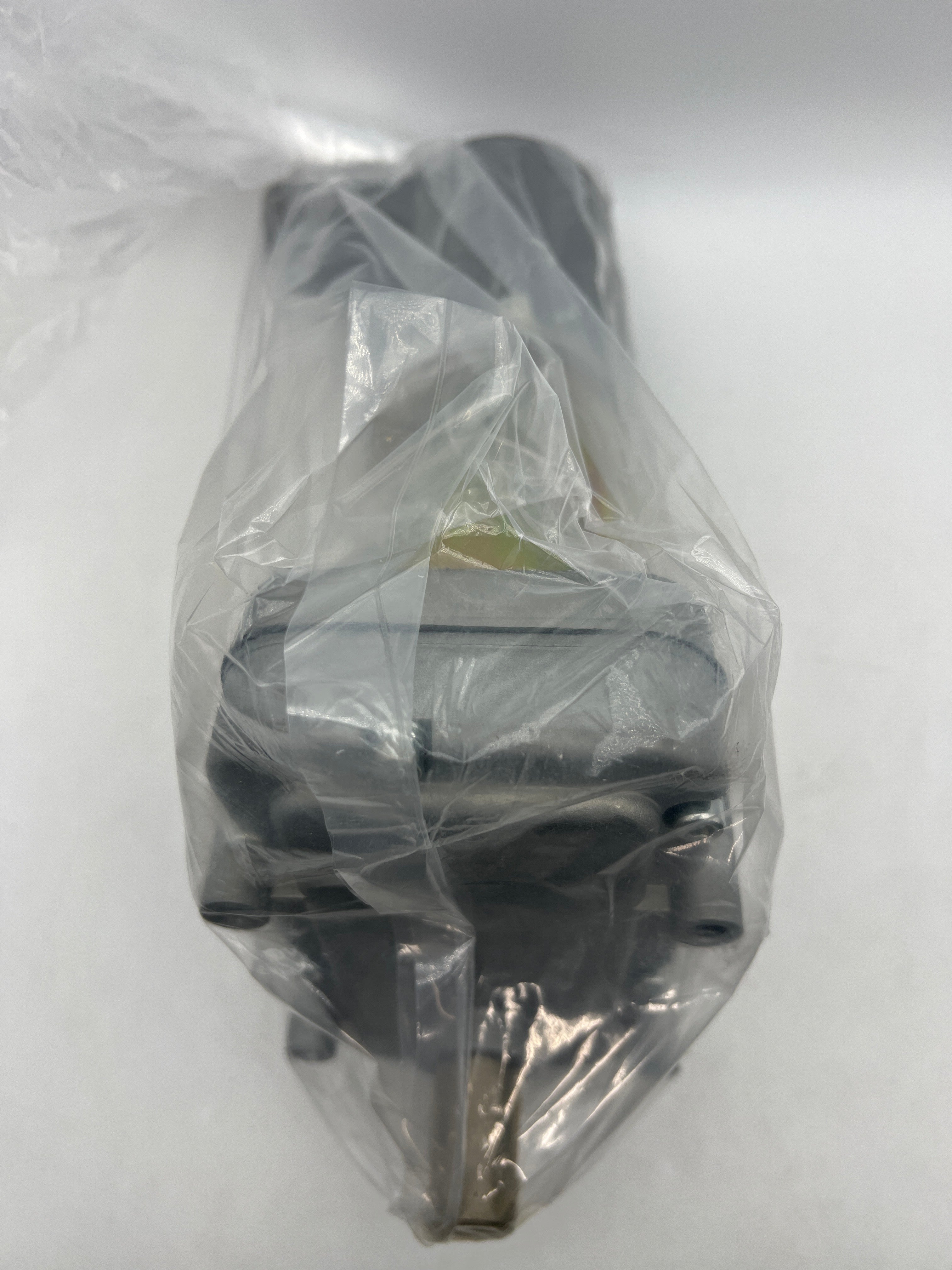

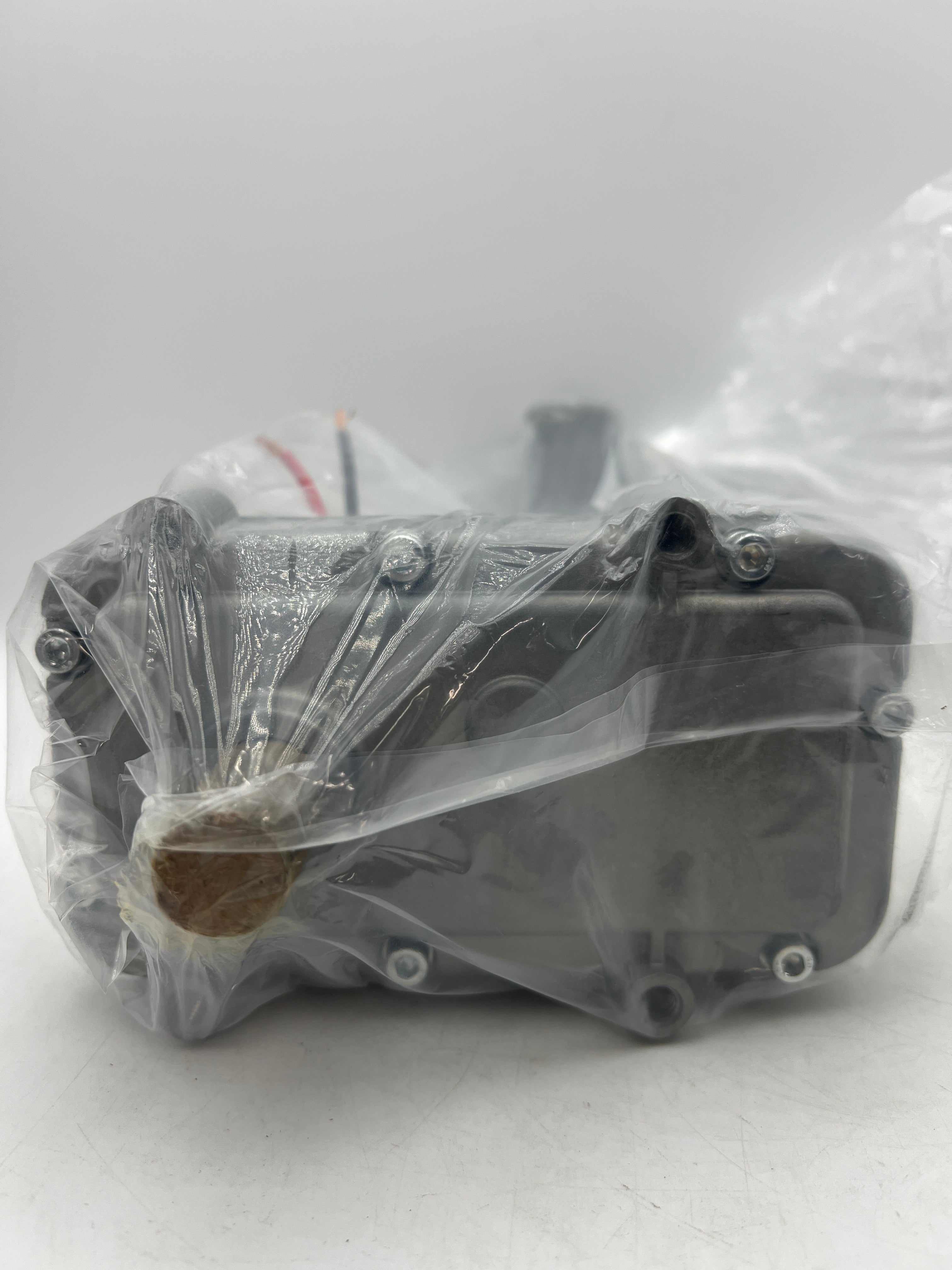

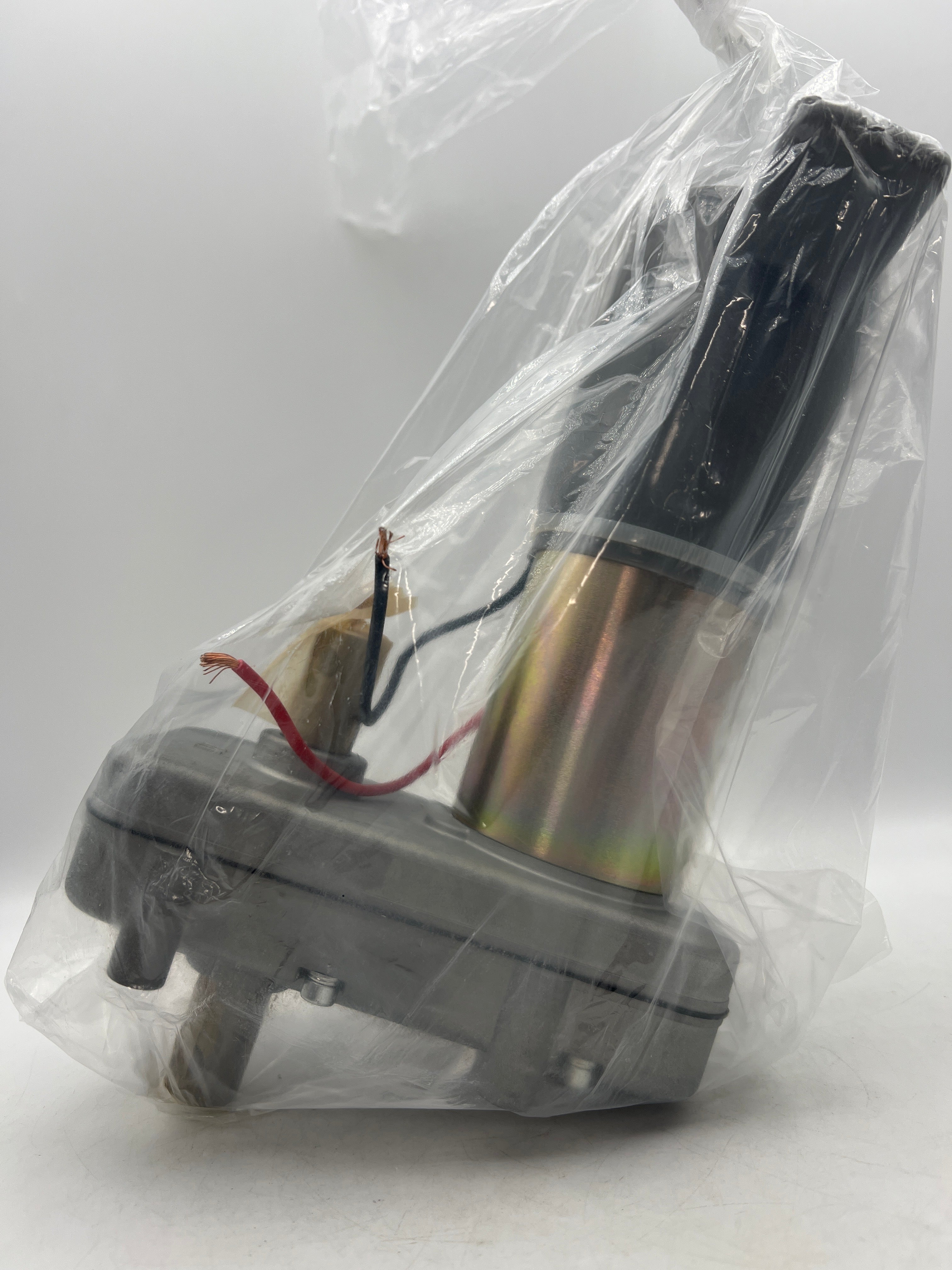

ECCPP RV Gearbox Motor PN 523900 - 12V Power Gear Replacement

Condition: No sign of damage or use. Box is open. Grade A.

The ECCPP RV Gearbox Motor PN 523900 is a 12V Power Gear replacement that restores and upgrades RV slide-out systems. It ensures smooth, reliable operation for recreational vehicles. Choose ECCPP for dependable slide-out action, supported by OEM-level quality and easy installation for your next adventure.

Upgrade your RV with confidence. The ECCPP Gearbox Motor meets or surpasses original equipment standards, delivering robust gearbox strength for many Power Gear models. This includes direct replacements for part numbers like 521976 and 524327. Check your own model, as compatibility reaches across popular RVs but must be confirmed before purchase.

Durability comes standard. Its frame uses a cast aluminum gear housing, which keeps it lightweight but strong. Steel construction in the motor helps resist wear and weather, increasing its life on the road. This motor is engineered for reliable, repetitive movement, even under heavy slides and frequent setups.

Operating at 12V, the motor supports 9 RPM speed for strong push and 12 RPM for faster movement. At 850 in-lbs torque, the RV slide-out motion remains powerful, while lower torque draws less energy for routine use. It also features a no-load speed of 14 RPM and a holding torque of 500 in-lbs, balancing power and efficiency throughout use. A 17 Amp draw at its toughest ensures steady force, while the reduced 9.5 Amps at lighter loads conserves battery.

This Power Gear replacement includes a reliable electro-mechanical brake with a manual release lever. That means you keep control and safety during operation, even in unexpected stops. The gearbox supports reversible rotation and intermittent duty cycles, making it ideal for different slide-out layouts or multi-use RV setups.

Installation is made simple by the four-bolt face mount with 3.38" bolt centers for secure fitting. Dual output shafts at 3/4" diameter with a 1-1/4" length allow universal applications. A crosshole design adds more mounting flexibility, letting professional technicians or skilled owners get the job done efficiently. For the best results, consider a professional install.

This replacement gearbox motor offers peace of mind. Each unit undergoes strict quality tests, from motor endurance to housing integrity. That means consistent products and performance for your travels. Investing in ECCPP’s 523900 model supports both restoration and upgrades. RV adventurers notice immediate improvements to reliability and performance. It is a decision that enhances every road trip.

Customers appreciate its quality, ease of setup, and noticeable boost in slide-out reliability. Whether you tour the country or use your RV seasonally, this motor is designed to last, keeping your travel lifestyle worry-free. Enjoy the freedom to stop or move on quickly, knowing your slide-out system will perform as expected.

Frequently Asked Questions (FAQ)

• Question: Is the ECCPP RV Gearbox Motor PN 523900 compatible with my RV?
• Answer: The ECCPP RV Gearbox Motor PN 523900 is built to replace several Power Gear models, like 521976 and 524327. Check your current motor’s part number before ordering. Compatibility depends on specific model numbers and build years. Refer to your owner's manual or speak with an authorized service technician for confirmation. If unsure, reach out to ECCPP directly for support.
• Question: What performance and features set this ECCPP motor apart?
• Answer: The 12V ECCPP Gearbox Motor offers key features for everyday RV use. Its torque output pushes even heavy slide-outs at 850 in-lbs maximum. The reversible rotation function means it fits both left and right-handed slide systems, while the brake lever allows for stops when needed. The sturdy design ensures reliable function in different climates and during frequent use. Its low-noise operation and energy-efficient build maximize battery use without sacrificing strength.
• Question: Does this Power Gear replacement come with a warranty after purchase?
• Answer: Yes, ECCPP backs this gearbox motor with a 2-year warranty. This coverage applies whether you install it yourself or use a professional. Warranty gives coverage against defects and performance issues, protecting your investment in RV upgrades. If questions or problems arise, ECCPP’s dedicated support team is ready to help troubleshoot or assist with replacements, ensuring long-term value.
• Question: Why choose the ECCPP PN 523900 over a used or generic RV motor?
• Answer: Choosing the ECCPP PN 523900 means getting a new, rigorously tested motor that matches or goes beyond OEM standards. Unlike used motors, every ECCPP model receives a full quality check before shipping, preventing surprises in fit or function. Downtime on the road can ruin trips. This replacement is engineered for quick installation and lasting performance, giving RV owners more control over their maintenance schedule and travel experience.
